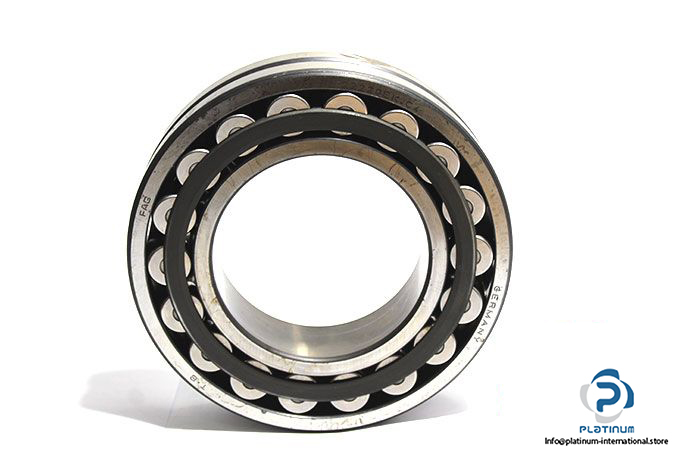

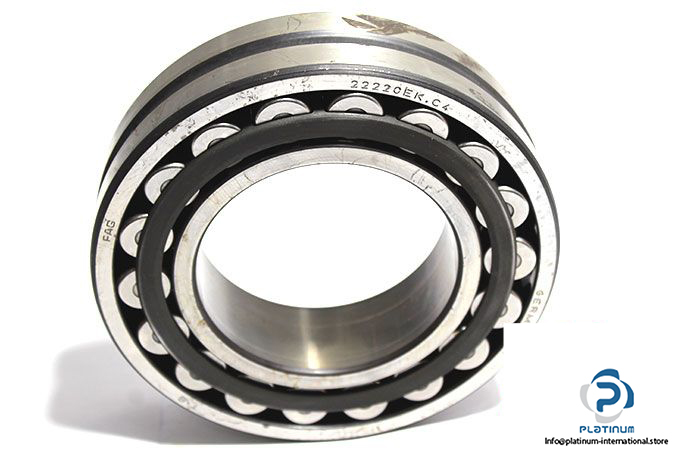

FAG 22220EK.C4 Spherical Roller Bearing

Manufacturer: Schaeffler INA

Type: Spherical Roller Bearing

Model: 22220EK.C4

Replaces: 22220-E1-XL-K, 22220E1K, 22220-E1-K

Part No: 22220

Bore Diameter d: 100 mm

Outer diameter D: 180 mm

Width B: 46 mm

Basic load ratings:

Dynamic C_r: 430 kN

Static C_0r: 475 kN

Fatigue load rating C_u: 53 kN

Limiting Speed:  4550 rpm

Refence Speed: 3150 rpm

Cage Design: JPA; Sheet metal cage

Bore Design: K; Tapered, taper 1:12‎

Weight: 4.8 kg
