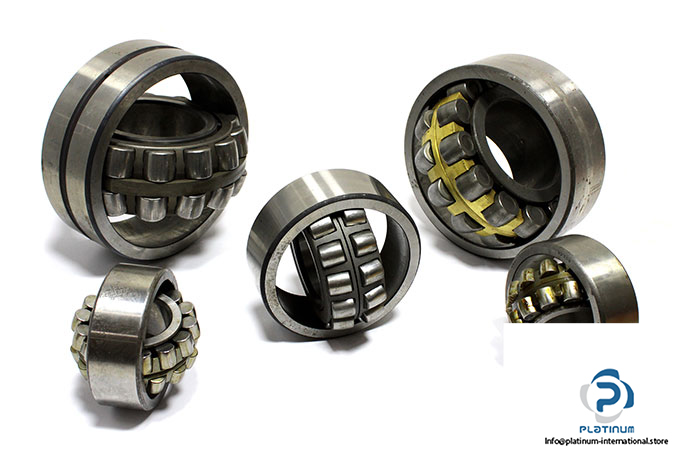

FAG 22230-E1 Spherical Roller Bearing
Manufacturer: Schaeffler FAG
Type: Spherical Roller Bearing
Model: 22230 E1
Replaces: 22230E1, 22230-E1-XL
Dimensions:
Bore Diameter d: 150 mm
Outer diameter D: 270 mm
Width: 73 mm
Dynamic load rating: 1010000 N
Static load rating: 1210000 N
Fatigue load limit: 114000 N
limiting speed: 2900 RPM
Reference speed: 2050 RPM
Cage material: Sheet metal cage
Operating temperature: -30 … +200 °C
