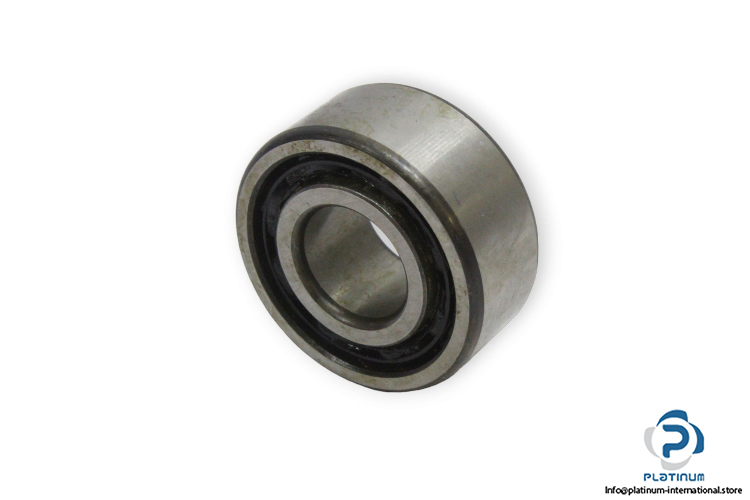

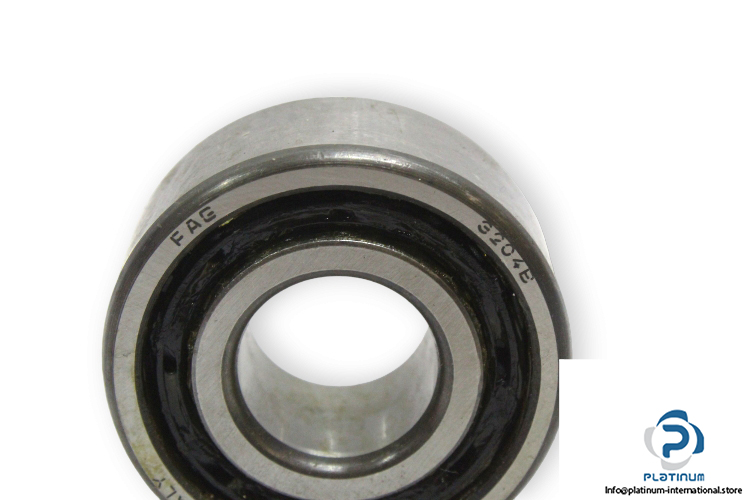

FAG 3204 B Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG
Type: Double Row Angular Contact Ball Bearing
Model: 3204B

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width B: 20.6 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C_r: 20600 N
Static C_0r: 12900 N
Fatigue load limit C_ur: 900 N
Limiting speed: 16100 rpm
Reference speed: 14700 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Design: B, Modified internal construction, nominal contact angle without filling slot
