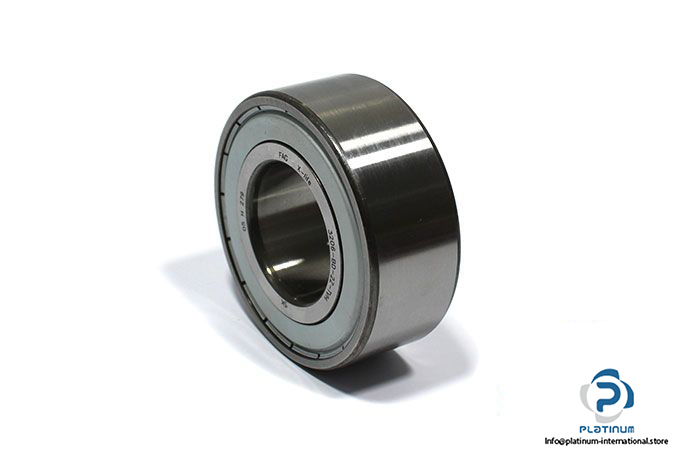

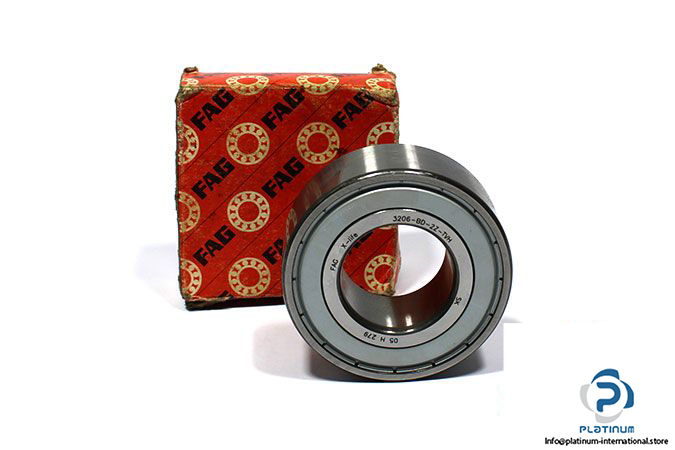

FAG 3206-BD-2Z-TVH Double ROW Angular Contact Ball Bearing

Name: FAG 3206-BD-2Z-TVH DOUBLE ROW ANGULAR CONTACT BALL BEARING
SKU: 994971
Availability: LimitedAvailability

fag-3206-bd-2z-tvh-double-row-angular-contact-ball-bearing-1

fag-3206-bd-2z-tvh-double-row-angular-contact-ball-bearing-2

fag-3206-bd-2z-tvh-double-row-angular-contact-ball-bearing-3

fag-3206-bd-2z-tvh-double-row-angular-contact-ball-bearing-4

Neu

Auf Lager3 EinheitenVersandbereit

SKU

994971

Kategorie

Angular Contact

Zustand

Neu

30 Angular Ball bearing bearings Contact Double Fag mm Row

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: Schaeffler FAG

Type: Double Row Angular Contact Ball Bearing

Model: 3206 BD 2Z TVH

Replaces: 3206-BD-XL-2Z-TVH

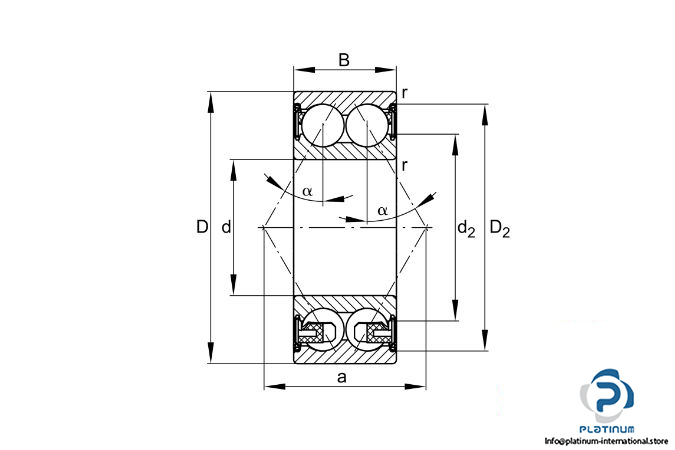

Dimensions

Bore Diameter d: 30 mm

Outer diameter D: 62 mm

Width B: 23.8 mm

Contact angle: 30 °

Basic load ratings, radial:

Dynamic C_r: 31000 N

Static C_0r: 22200 N

Fatigue load limit C_ur: 1540 N

Limiting speed: 9000 rpm

Reference speed: 11100 rpm

Seal: Shield on both sides

Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66

Operating temperature: -20 … +120 °C
