FAG 7201B.TVP Angular Contact Ball Bearing
Neu
Auf Lager2 EinheitenVersandbereit
Schrägkugellager Das FAG 7201B.TVP Schrägkugellager verfügt über einen Kontaktwinkel von 40°, einen glasfaserverstärkten Polyamid PA66 Käfig und eine Höchstdrehzahl von 33.000 U/min für industrielle Anwendungen.
12mm40-degree7201B.TVPAngleAngularBallbearingboreCageContactFaghigh-performanceHigh-SpeedIndustrialPolyamide
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

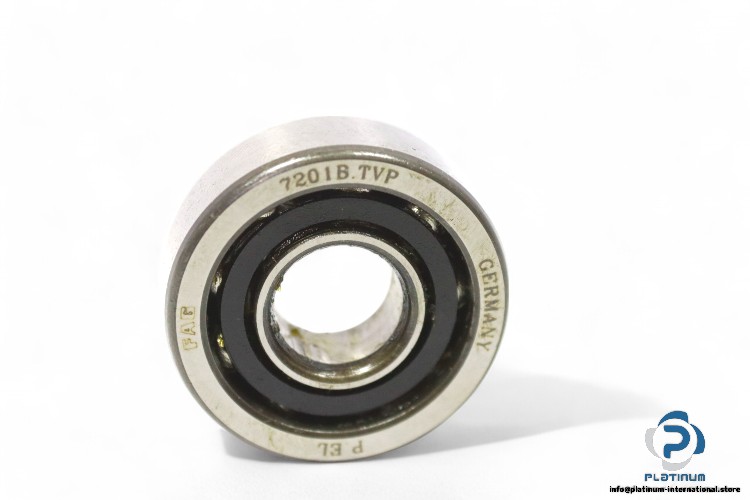

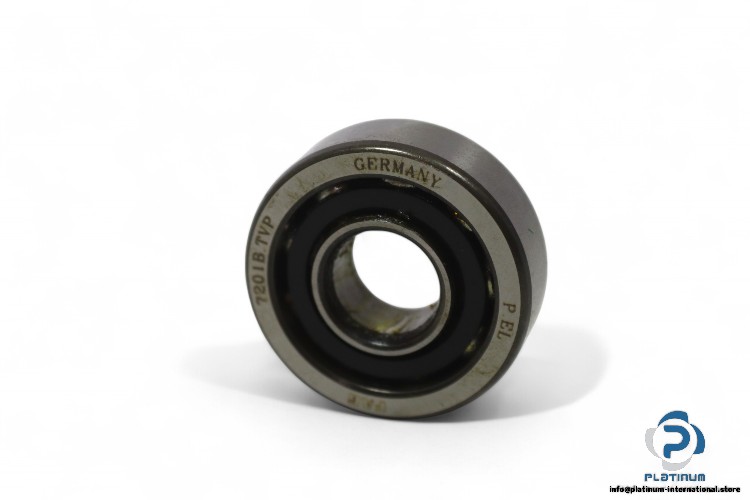

FAG 7201B.TVP Angular Contact Ball Bearing
The FAG 7201B.TVP Angular Contact Ball Bearing is engineered for high-speed and high-load applications, offering a 40° contact angle for enhanced axial and radial load capacity. Designed with a TVP solid cage made of glass-fiber reinforced polyamide PA66, this bearing ensures durability and efficiency in demanding industrial environments.
Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7201B.TVP
Basic Load Ratings:
| Bore Diameter | 12 mm |
| Outer Diameter | 32 mm |
| Width | 10 mm |
| Contact Angle | 40° |
| Dynamic (Cr) | 7.9 kN |
| Static (C0r) | 3.55 kN |
| Fatigue Load Rating | 248 N |
| Limiting Speed | 33,000 rpm |
| Reference Speed | 21,100 1/min |
| Cage | TVP, solid cage made of glass-fiber reinforced polyamide PA66 |
