FAG 7207 B Angular Contact Ball Bearing
Gebraucht
Auf Lager1 EinheitVersandbereit
Winkelkontakt-Kugellager FAG 7207 B Winkelkontakt-Kugellager mit 35 mm Bohrung, 72 mm Außendurchmesser, 17 mm Breite, 40° Kontaktwinkel, Messingkäfig und hohen Drehzahlwerten für zuverlässige industrielle Leistung.
3540727207AngleAngularBBallbearingborebrassCageContactDegreediameterFagHighIndustrialmmOuterPrecisionSpeed
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

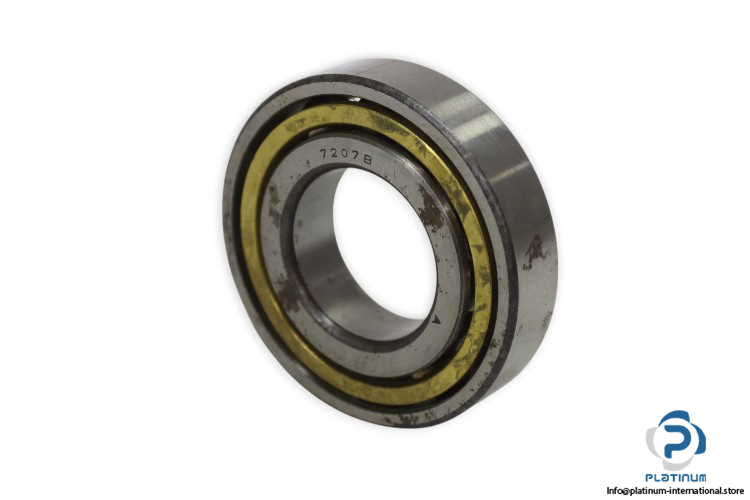

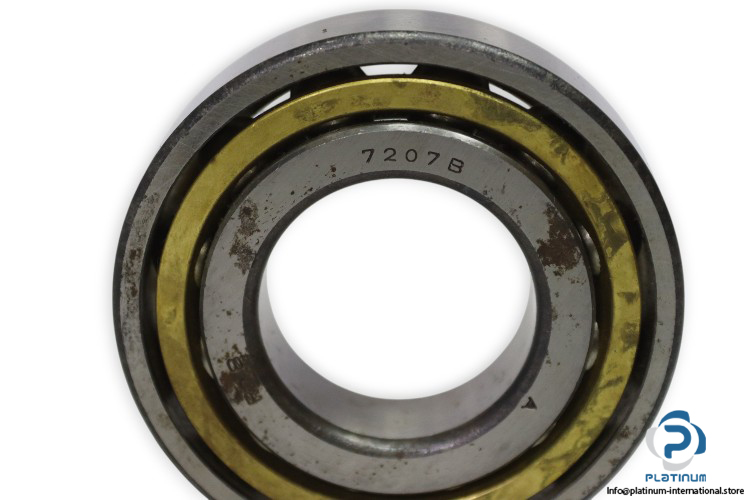

FAG 7207 B ANGULAR CONTACT BALL BEARING
The FAG 7207 B Angular Contact Ball Bearing is designed for high precision and load-carrying capacity in demanding industrial applications. With a 40° contact angle, brass cage, and robust performance under high speeds, this bearing ensures reliable operation and long service life.
Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7207 B
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 17 mm |
| Chamfer (rmin) | 1.1 mm |
| Dynamic Load Rating (Cr) | 30000 N |
| Static Load Rating (C0r) | 19000 N |
| Fatigue Load Limit (Cur) | 1320 N |
| Contact Angle | 40° |
| Limiting Speed | 17400 rpm |
| Reference Speed | 9600 rpm |
| Cage | Brass |
