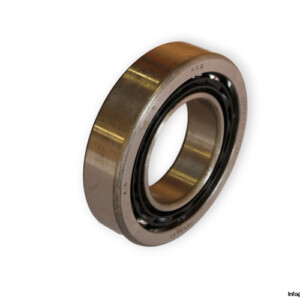

FAG 7209B.TVP.P5.UO Angular Contact Ball Bearing

Manufacturer:  FAG
Type: ANGULAR CONTACT BALL BEARING

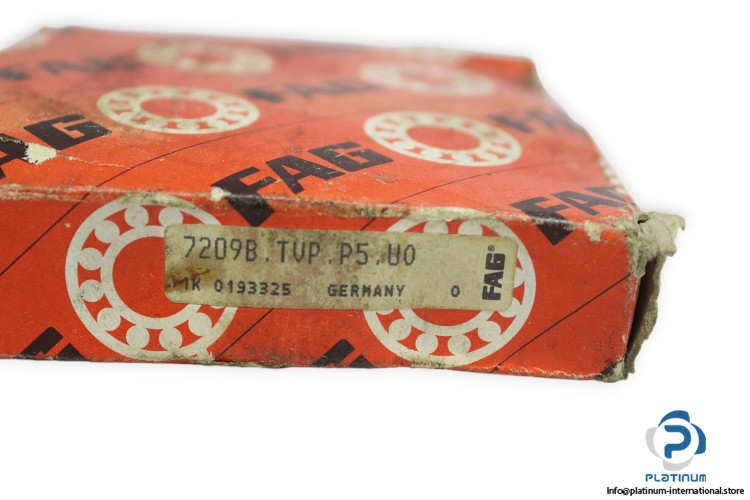

Model: 7209B-TVP-P5-UO

Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 85 mm
Width B: 19 mm
Contact angle α: 40 °
Basic load ratings:
Dynamic C_r: 40000 N
Static C_0r: 27000 N
Fatigue load limit C_ur: 1870 N
Limiting speed: 11000 1/min
Reference speed: 8000 1/min
Cage: TVP, solid cage made of glass-fiber reinforced polyamide PA66
Tolerance class: P5, Class5 (P5), better than P6
Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement
Design variant: B
