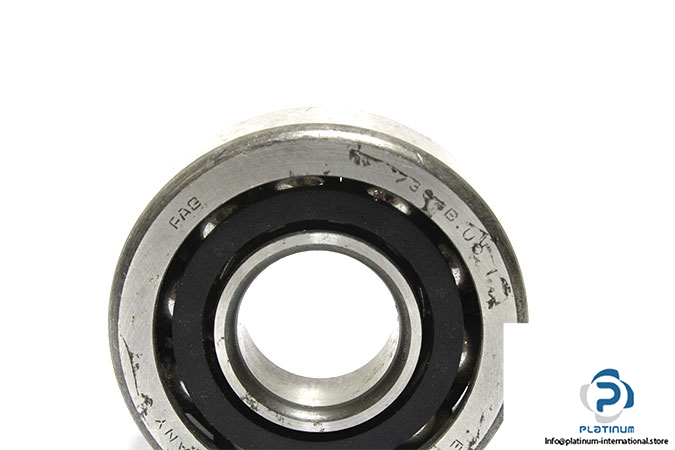

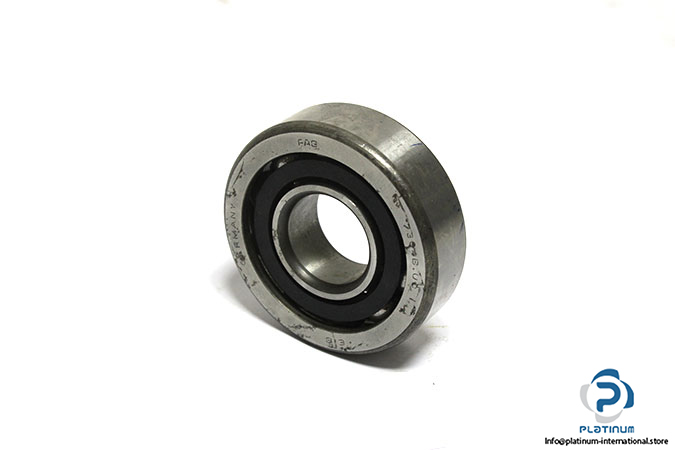

FAG 7304B.UO Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7304 B.UO



Dimensions

Bore Diameter d: 20 mm

Outer diameter D: 52 mm

Width B: 15 mm

Basic load ratings:

Dynamic C_r: 21700 N

Static C_0r: 11100 N

Fatigue load limit C_ur: 770 N

Contact Angle: 40°

Limiting speed: 19300 rpm

Reference speed: 11500 rpm

Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class:P6, Class6 (P6), better than PN
