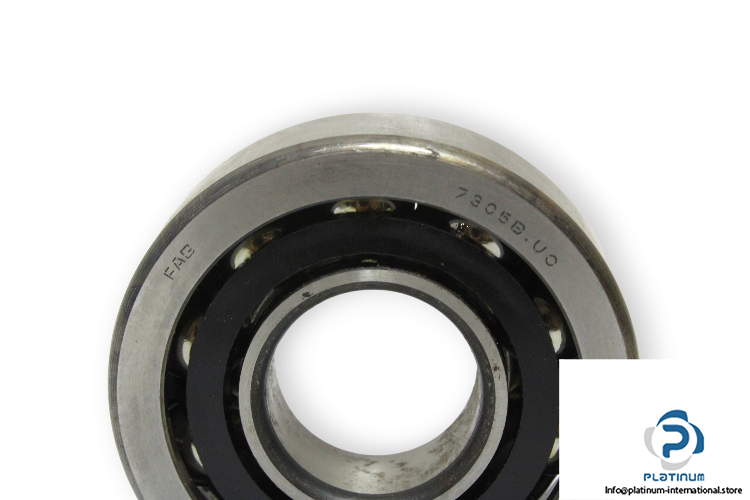

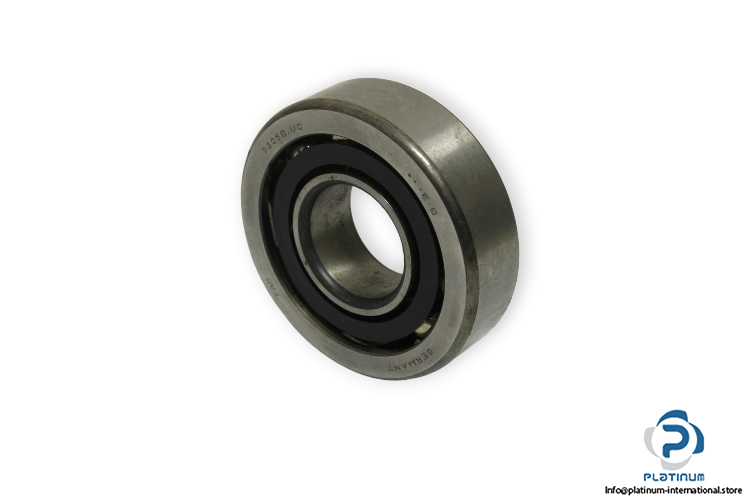

FAG 7305B.UO Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7305 B.UO



Dimensions

Bore Diameter d: 25 mm

Outer diameter D: 62 mm

Width B: 17 mm

Basic load ratings:

Dynamic C_r: 30000 N

Static C_0r: 15800 N

Fatigue load limit C_ur: 1100 N

Contact Angle: 40°

Limiting speed: 15800 rpm

Reference speed: 9800 rpm

Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class:P6, Class6 (P6), better than PN
