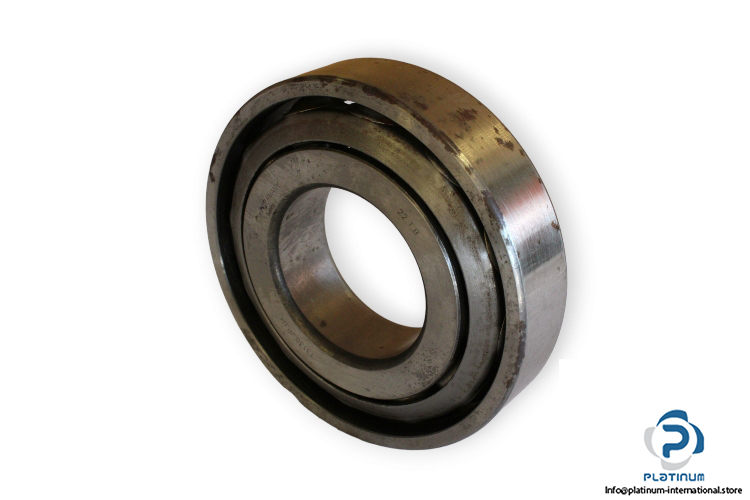

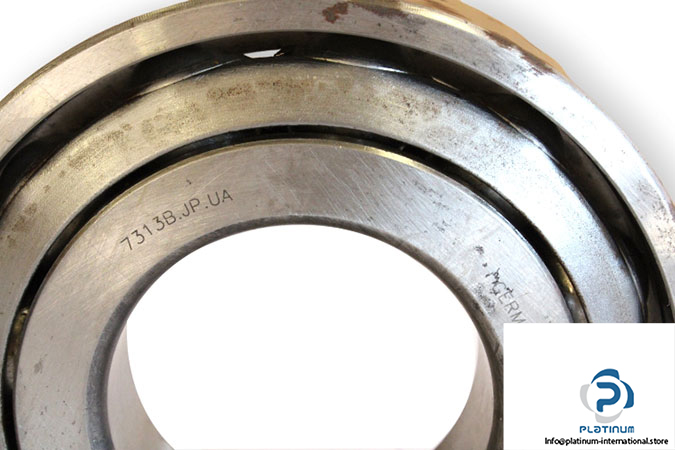

FAG 7313B.JP.UA Angular Contact Ball Bearing

Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7313 B.JP.UA

Dimensions
Bore Diameter d: 65 mm
Outer diameter D: 140 mm
Width B: 33 mm
Basic load ratings:
Dynamic C_r: 110000 N
Static C_0r: 82000 N
Fatigue load limit C_ur: 5600 N
Contact Angle: 40°
Limiting speed: 6500 rpm
Reference speed: 5000 rpm
Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance
Cage: steel sheet metal
