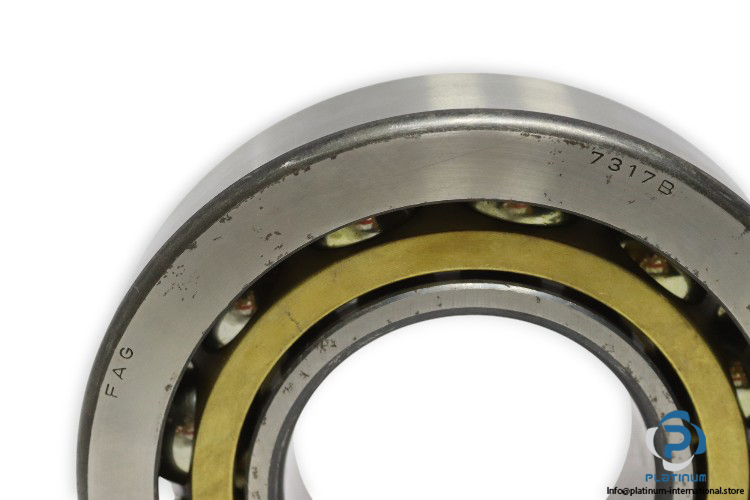

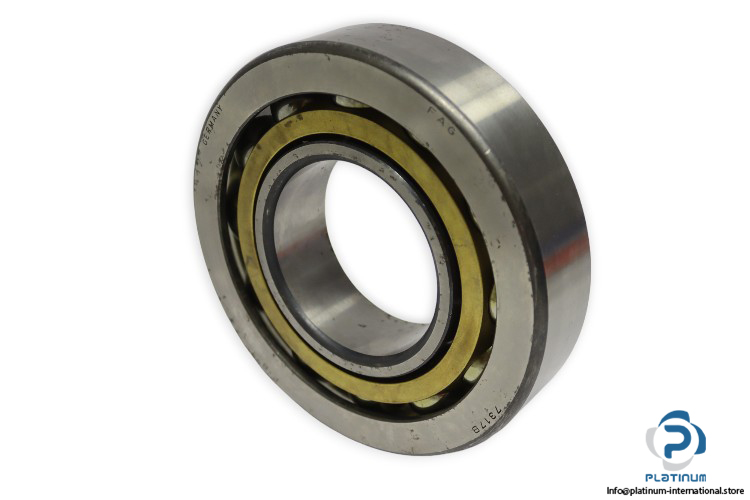

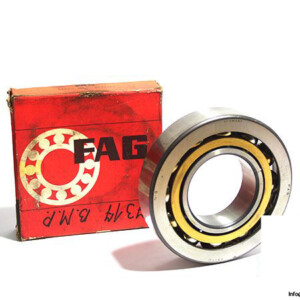

FAG 7317 B Angular Contact Ball Bearing

Manufacturer: FAG
Type: ANGULAR CONTACT BALL BEARING
Model: 7317-B
Replaces: 7317-B-XL-MP

Bore Diameter: 85 mm
Outer diameter: 180 mm
Width: 41 mm
Basic Load ratings:
Basic Dynamic Load Capacity C_dyn: 167000 N
Basic Static Load Capacity C₀: 138000 N
Limiting Speed: 6,400 1/min
Reference Speed: 4,100 1/min
Fatigue load limit, radial: 8300 N
Cage: MP, solid brass cage, ball guided
Tolerance class: Normal (PN)
Design variant: B
Contact angle α:  40 °
