Bearings Rolling Bearings Angular Contact

FAG B71905E.T.P4S.UL Angular Contact Ball Bearing

Name: FAG B71905E.T.P4S.UL ANGULAR CONTACT BALL BEARING
SKU: 1029371
Availability: LimitedAvailability

fag-B71905E.T.P4S.UL-angular-contact-ball-bearing-(new)-(carton)

fag-B71905E.T.P4S.UL-angular-contact-ball-bearing-(new)-(carton)-1

fag-B71905E.T.P4S.UL-angular-contact-ball-bearing-(new)-(carton)-2

Neu

Auf Lager3 EinheitenVersandbereit

Hersteller: FAG Typ: Winkelkontaktkugellager (Spindellager) Modell: B 71905E.T.P4S.UL

Hersteller

FAG

SKU

1029371

Kategorie

Angular Contact

Zustand

Neu

25 Angular Ball bearing bearings Contact Fag mm Schaeffler shaft spindle

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: FAG
Type: Angular contact ball bearing ( Spindle Bearing)
Model: B71905E.T.P4S.UL

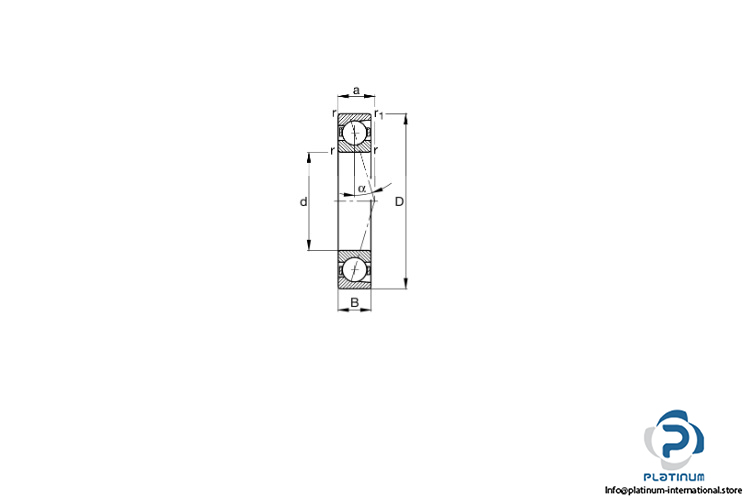

Dimensions
Bore Diameter d: 25 mm
Outer diameter: 42 mm
Width: 9 mm
Chamfer r_min: 0,3 mm
Contact Angel: E, 25°
Dynamic C_r: 7600 N
Static C_0r:3600 N
Fatigue limit load C_ur: 380 N
Limiting speed for grease lubrication: 32000 rpm
Limiting speed for oil lubrication: 50000 rpm
Accuracy: P4S
Bearing arrangement: U; Single bearing Arrangement in any combination
Preload: L; Light
