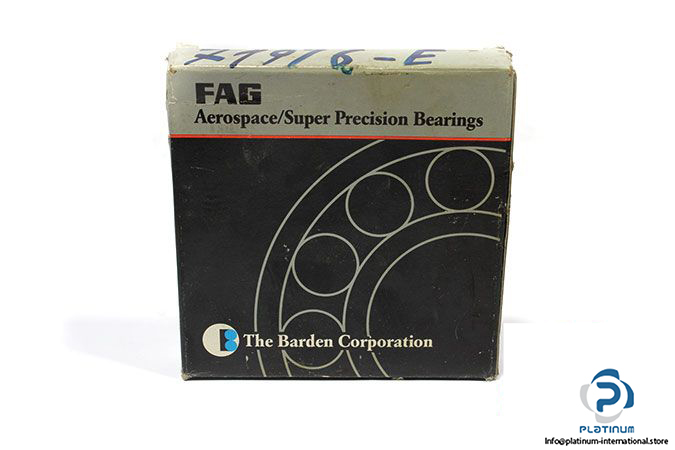

FAG B71916 E.T.P4S.UL Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact ball bearing (Spindle Bearing)

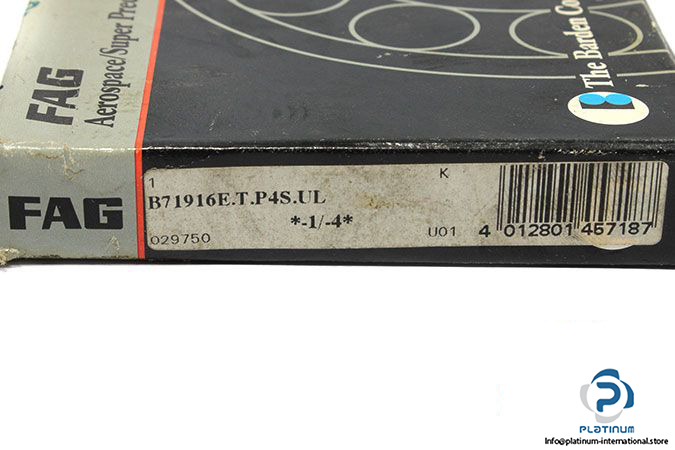

Model: B71916E.T.P4S.UL

Replaces: B71916-E-T-P4S-UL, B71916E.TPA.P4.UL

Dimensions:

Bore Diameter d: 80 mm

Outer diameter D: 110 mm

Width: 16 mm

Contact angle: 15 °

Dynamic load rating: 33500 N

Static load rating: 24000 N

Fatigue load limit: 2550 N

Limiting speed for grease lubrication: 11000 RPM

Limiting speed for oil lubrication: 17000 RPM

Tolerance class: P4S

Cage material: Laminated fabric cage
