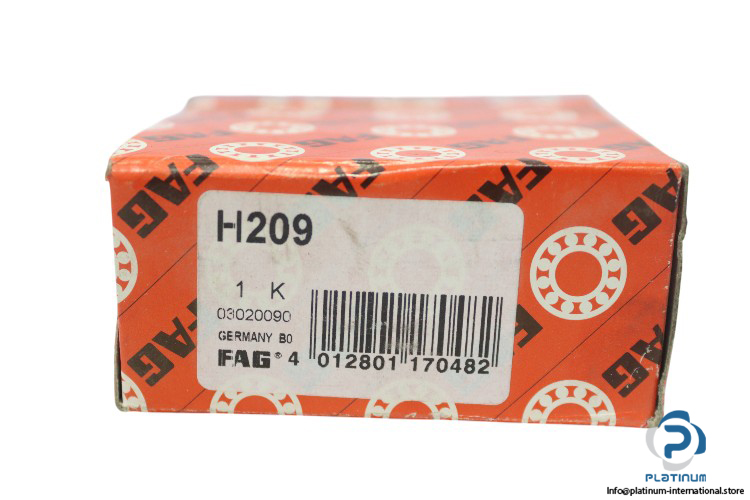

FAG H 209 Adapter Sleeve
Neu
Auf Lager2 EinheitenVersandbereit
ADAPTERHÜLSE Robuste Adapterhülse mit 1:12 Kegel, 40 mm Bohrung und M45x1,5 Gewinde, entwickelt für präzise und sichere Lagerbefestigung in industriellen Wellenbaugruppen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

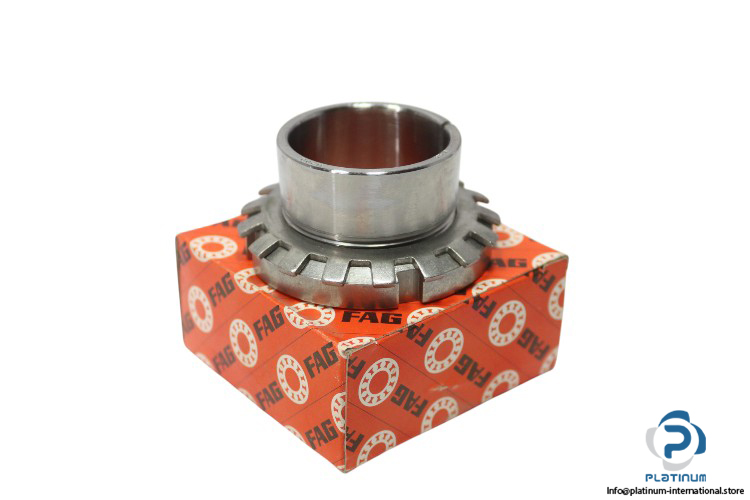

FAG H 209 ADAPTER SLEEVE
This precision-engineered adapter sleeve is designed for secure and reliable mounting of bearings with a tapered bore onto cylindrical shafts. It ensures easy installation and dismounting, making it ideal for a wide range of mechanical and industrial applications.
Manufacturer: FAG
Type: Adapter Sleeve
Model: H 209
| Bore Diameter d1 | 40 mm |
| Sleeve Length B1 | 33 mm |
| Bore Diameter Bearing d | 45 mm |
| Outer Diameter Nut d2 | 65 mm |
| Width Nut and Lock B2 | 11.25 mm |
| Thread G | M45x1.5 |
| Taper | 1:12 |
| Locknut | KM9 |
| Fuse | MB9 |
