FAG NU 206 E.TVP2 Cylindrical Roller Bearing
Neu
Auf Lager1 EinheitVersandbereit
Zylinderrollenlager FAG NU 206 E.TVP2 Zylinderrollenlager mit 30 mm Bohrung, 62 mm Außendurchmesser und solidem PA66-Fensterring. Hohe Tragzahlen und Drehzahlen bis zu 16300 U/min.
206304600062bearingboreCageCylindricaldiameterDynamicE.TVP2FagHighIndustrialLoadmmNNUOuterPA66PrecisionRollerSpeed
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

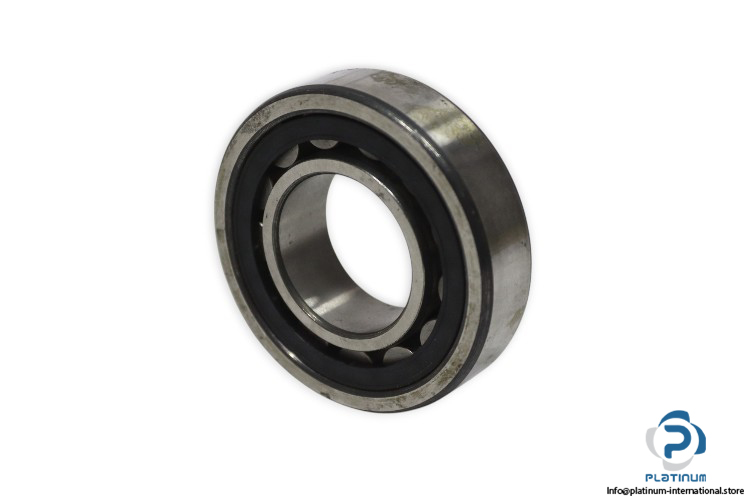

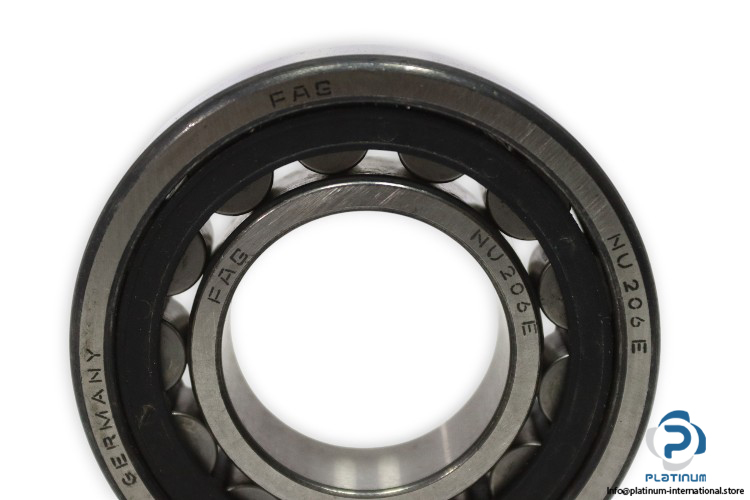

FAG NU 206 E.TVP2 CYLINDRICAL ROLLER BEARING
The FAG NU 206 E.TVP2 is a high-precision cylindrical roller bearing designed for demanding industrial applications. With a solid PA66 window cage and high load ratings, it offers excellent performance and durability even at high speeds.
Manufacturer: FAG
Type: Cylindrical Roller Bearing
Model: NU 206 E.TVP2
| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width | 16 mm |
| Basic Dynamic Load Rating, Radial | 46000 N |
| Basic Static Load Rating, Radial | 37500 N |
| Fatigue Load Limit, Radial | 4450 N |
| Limiting Speed | 16300 rpm |
| Reference Speed | 9600 rpm |
| Cage | TVP2, Solid Window Cage made from PA66 |
