FAG NU316E.TVP2.C3 Cylindrical Roller Bearing

Manufacturer: FAG

Type: Cylindrical Roller Bearing

Model: NU 316 E TVP2 C3

Replaces: NU316-E-XL-TVP2

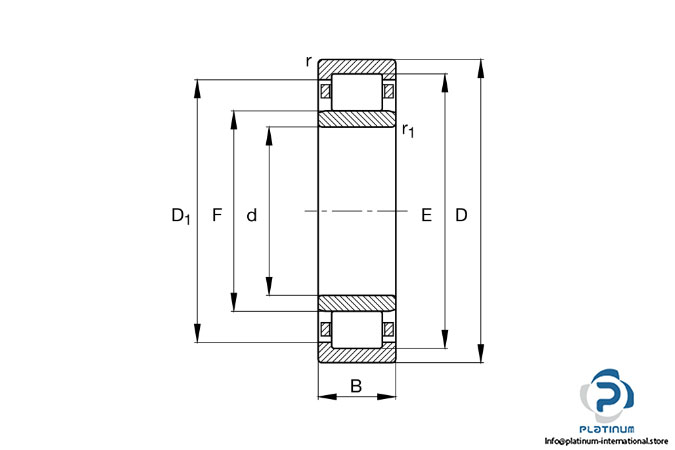

Dimensions:

Bore Diameter d: 80 mm

Outer diameter D: 170 mm

Width B: 39 mm

Basic load ratings, radial:

Dynamic C_r: 300000 N

Static C_0r: 275000 N

Fatigue load rating, radial: 37500 N

Limiting speed: 5500 rpm

Reference speed: 4100 rpm

Clearance: C3

Cage: TVP2, Solid Window Cage made from PA66

Operating temperature: -30 … +120 °C
