FAG Nutr 15 Yoke Type Track Roller
Gebraucht
Auf Lager1 EinheitVersandbereit
YOKE-TYP TRACK ROLLER FAG NUTR 15 Yoke-Typ Track Roller mit 15 mm Bohrung, 35 mm Außendurchmesser und 19 mm Breite. Entwickelt mit Labyrinthdichtungen und hohen Tragfähigkeiten für langanhaltende Leistung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

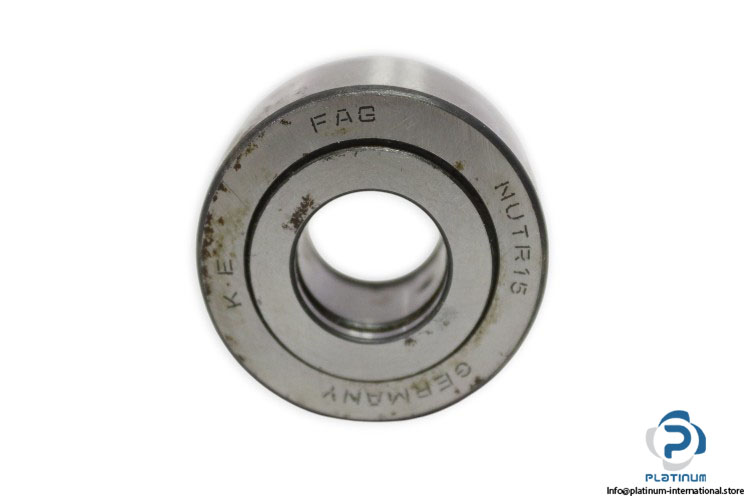

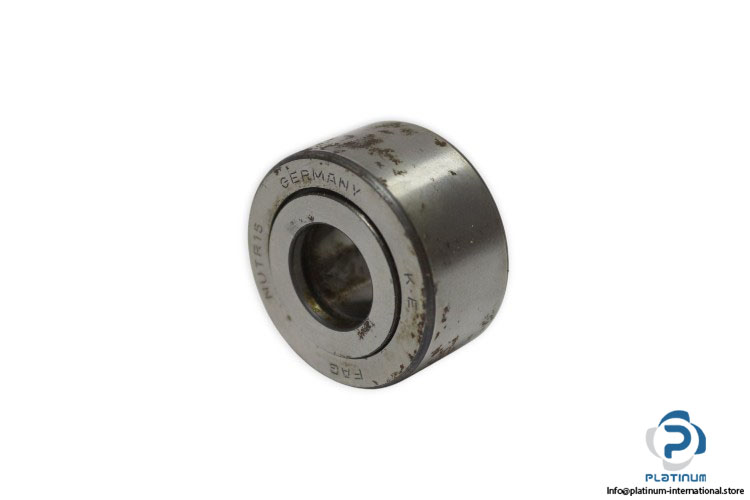

FAG NUTR 15 YOKE TYPE TRACK ROLLER
The FAG NUTR 15 is a robust yoke type track roller designed for precise guidance and reliable performance in heavy-duty applications. With labyrinth seals on both sides and high load-bearing capacity, it offers excellent durability and reduced maintenance needs.
Manufacturer: FAG
Type: Yoke Type Track Roller
Model: NUTR 15
| Bore Diameter (d) | 15 mm |
| Outer Diameter (D) | 35 mm |
| Width of Bearing (B) | 19 mm |
| Basic Dynamic Load Rating, Radial | 15600 N |
| Basic Static Load Rating, Radial (C0) | 18600 N |
| Fatigue Load Limit (Pu) | 2480 N |
| Speed on Permanent Grease Lubrication | 6500 rpm |
| Permissible Static Load, Radial | 16800 N |
| Permissible Dynamic Load Outer Ring, Radial | 8500 N |
| Sealing | Labyrinth seals on both sides |
