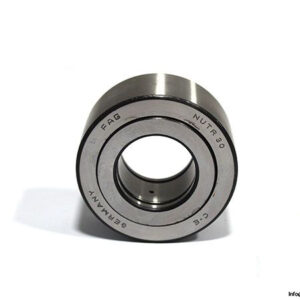

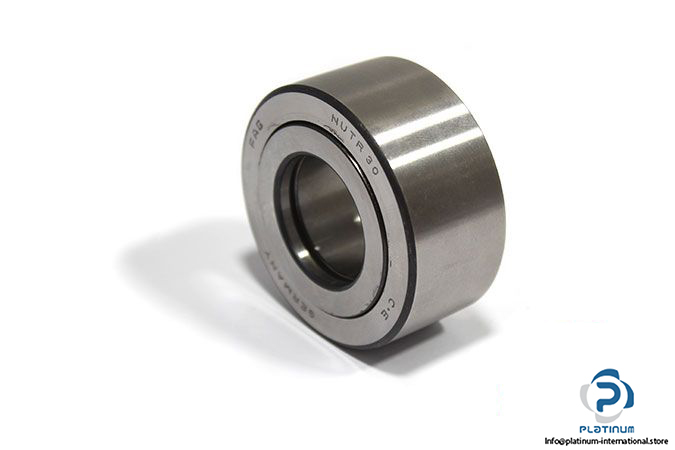

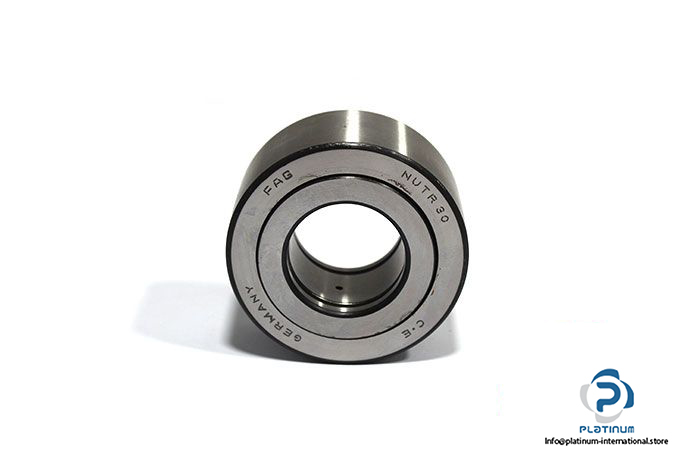

FAG NUTR30 Yoke Type Track Roller

Manufacturer: Schaeffler FAG

Type: Yoke Type Track Roller

Model: NUTR 30

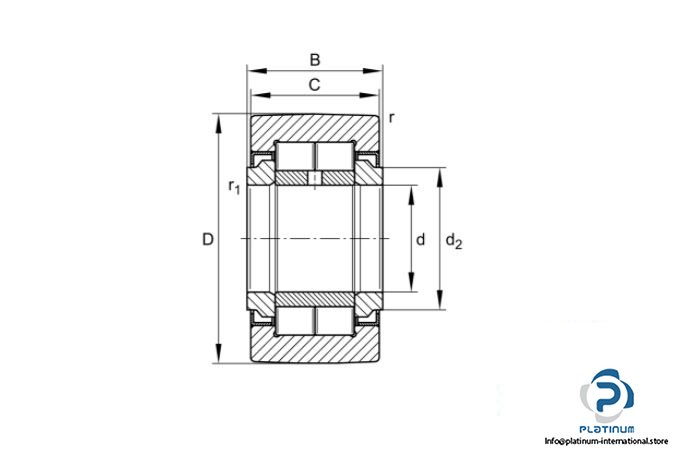

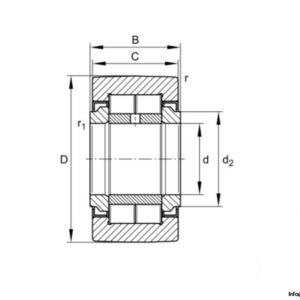

Dimensions:

Bore Diameter d: 30 mm

Outer diameter D: 62 mm

Width of the bearing B: 29 mm

Width outer ring C: 28 mm

Basic load ratings, radial:

Dynamic C_{r w}: 41000 N

Static C_{0r w}: 54000 N

Fatigue load limit C_{ur w}: 7400 N

Permissible dynamic load outer ring, radial F_r: 23300 N

Permissible static load, radial F_0r: 46000 N

Speed on permanent grease lubrication: 2600 rpm

Weight: 0.47 Kg
