FAG RNA-NA 6908A Needle Roller Bearing
Gebraucht
Auf Lager1 EinheitVersandbereit
Nadellager FAG Nadellager mit kompakter Bauweise, hoher Tragfähigkeit und optimierter Innenstruktur für zuverlässige industrielle Leistung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

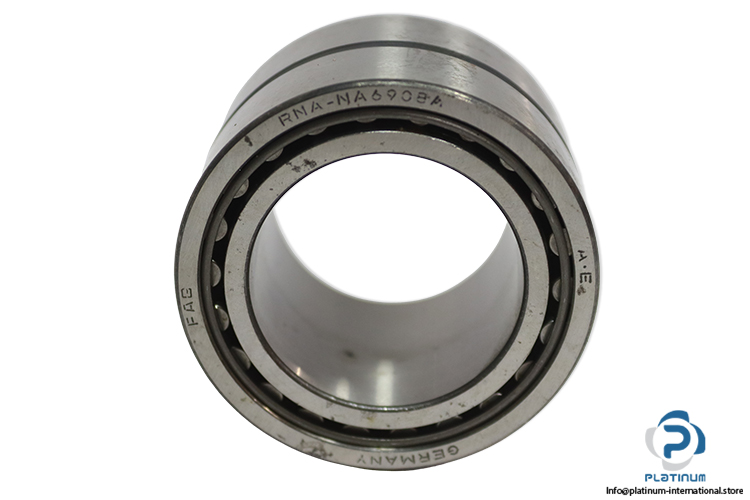

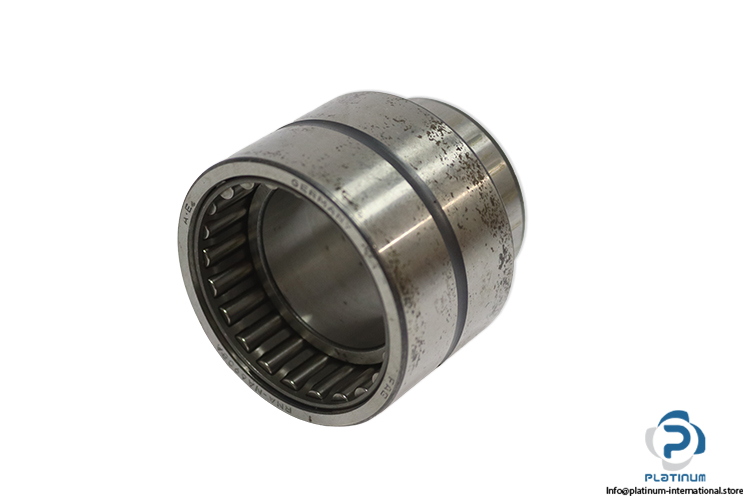

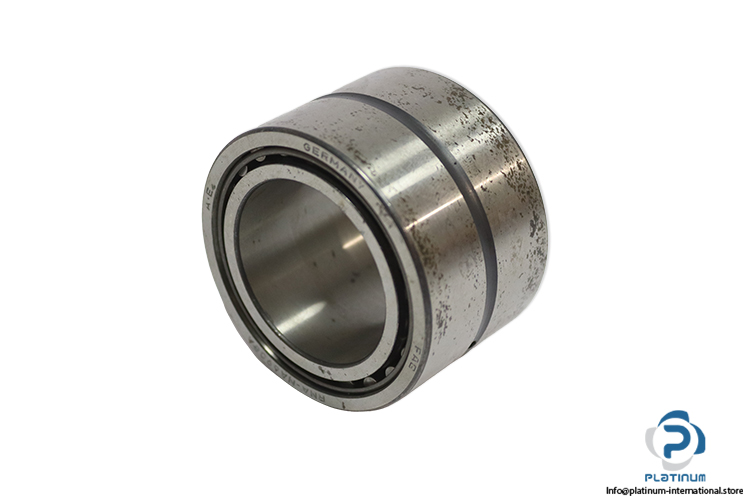

FAG RNA-NA 6908A Needle Roller Bearing
The FAG RNA-NA 6908A Needle Roller Bearing is a high-performance bearing designed for applications requiring high load capacity and compact radial design. Engineered with precision, it ensures reliable operation, reduced friction, and long service life in demanding industrial environments.
Manufacturer: FAG
Type: Needle Roller Bearing
Model: RNA-NA 6908A
| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 62 mm |
| Width (C) | 40 mm |
| Minimum Chamfer Dimension (rmin) | 0.6 mm |
| Dynamic Load Rating (C) | 74,000 N |
| Static Load Rating (C0) | 116,000 N |
| Fatigue Load Limit, Radial | 19,800 N |
| Limiting Speed | 9,200 1/min |
| Reference Speed | 5,100 1/min |
| Design | RNA-NA, With Inner Ring |
| Suffix | A (Optimized Internal Design) |
| Recommendation | Ideal choice for high-load compact applications requiring durability and optimized performance. |
