Fairchild 30252 Pressure Regulator
Gebraucht
Auf Lager1 EinheitVersandbereit
Pressure Regulator
The FAIRCHILD 30252 is a precision air pressure regulator with 2“100 PSIG range, 250 PSIG max supply, 40 SCFM flow capacity, and durable aluminum body for industrial pneumatic applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

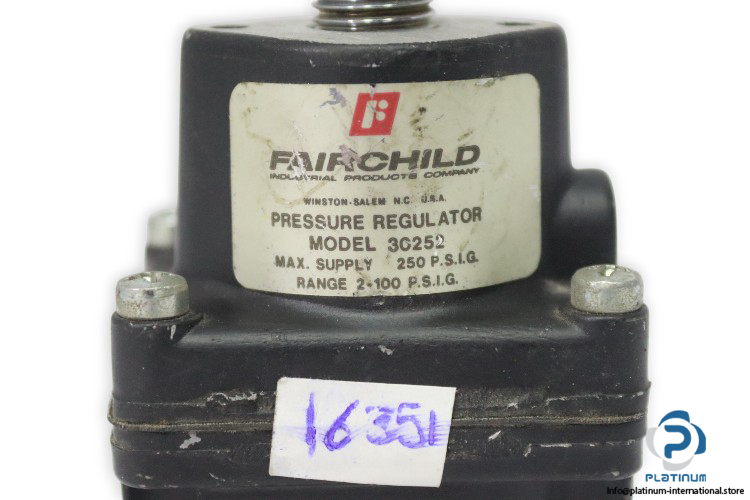

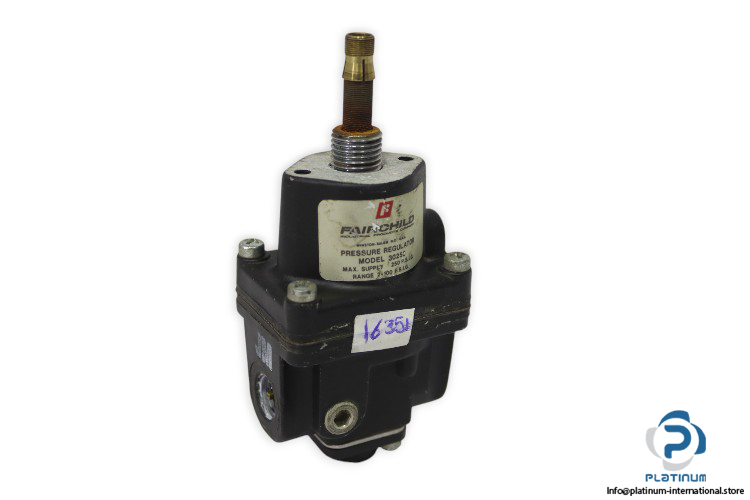

FAIRCHILD 30252 Pressure Regulator
The FAIRCHILD 30252 Pressure Regulator provides precise air pressure control with excellent stability and sensitivity. Designed for industrial pneumatic systems, it delivers consistent performance across a wide range of pressures and temperatures.
Manufacturer: FAIRCHILD
Type: Pressure Regulator
Model: 30252
| Fluid | Air |
| Max Supply Pressure | 250 PSIG |
| Pressure Regulation Range | 2 “ 100 PSIG |
| Flow Capacity | 40 SCFM |
| Sensitivity | 1/4" (0.63 cm) Water Column |
| Ambient Temperature | -40°C to 93.3°C |
| Material “ Body and Housing | Aluminum |
| Material “ Diaphragms | Nitrile on Dacron |
| Material “ Trim | Brass |
| Pneumatic Connection | G1/4 |
