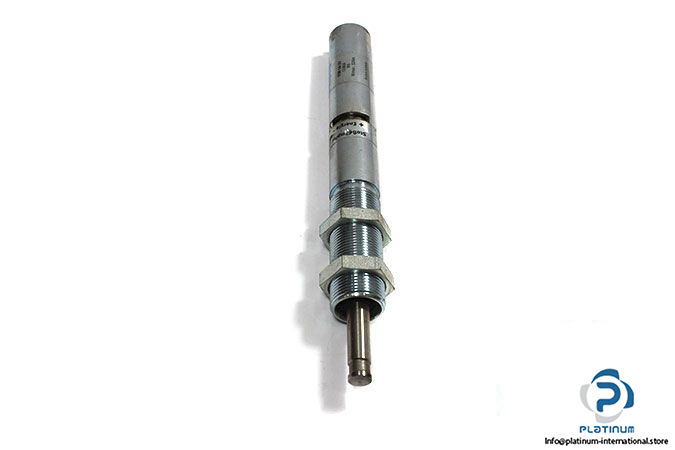

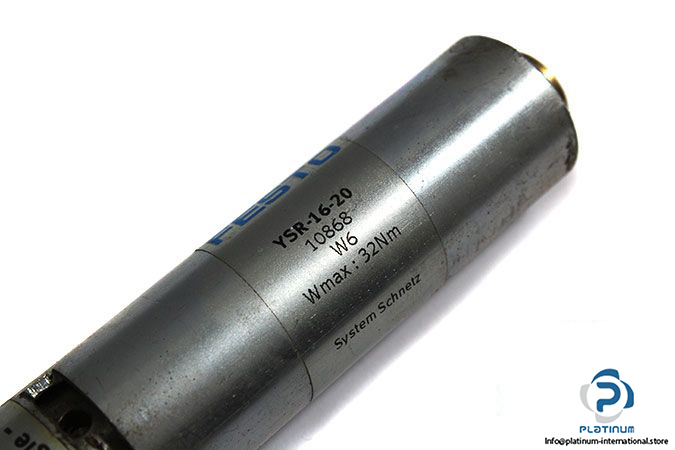

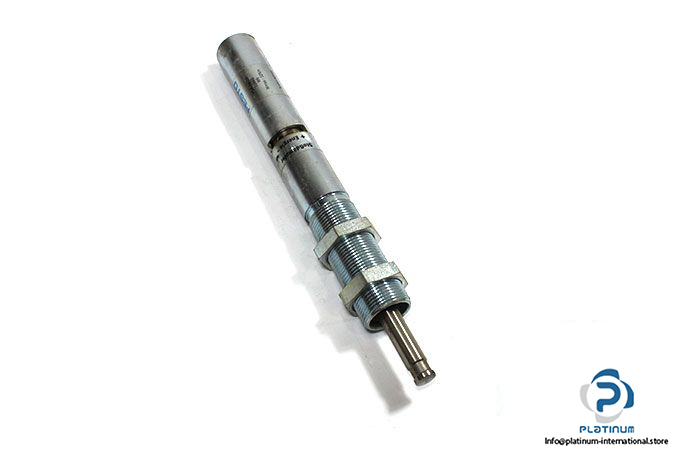

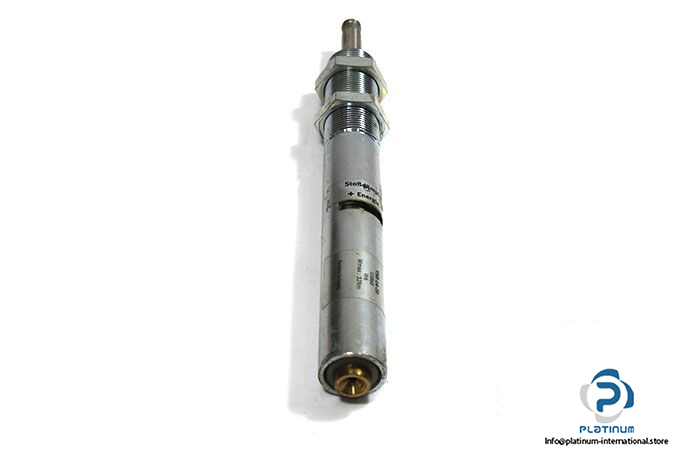

Festo 10868 Shock Absorber

Manufacturer: FESTO
Type: SHOCK ABSORBER
Model: YSR-16-20
Part No.: 10868

Type of installation: Threaded With Lock Nuts
Impact Velocity: 0.1 … 3 m/s
Max. Cushioning Work: 32 N.m
Max. Impact Load: 160 kg
Reset Force: 20 N
Housing Material: Steel
Shock Absorber Size: 20 mm
Stroke Length: 20 mm
Rod Diameter: 8 mm
Piston Diameter: 16 mm
Total length: 179 mm
Diameter and Step for Threaded Surface: M20 x 1.25
Temperature Range: -10 ….. 80 ^°C
