Festo 11968 Single Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
166,66$
SINGLE SOLENOID VALVE
FESTO MFH-3-3/4-S electrically actuated 3/2-way valve with high 7500 l/min flow rate and durable die-cast aluminum body for industrial pneumatic systems.3/2-wayActuatedAirconnectionControlElectricallyFestoflowG3/4HighIndustrialMFH-3-3/4-SPneumaticSinglesolenoidValve
Neu
Auf Lager 188,88$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

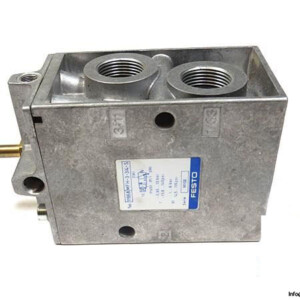

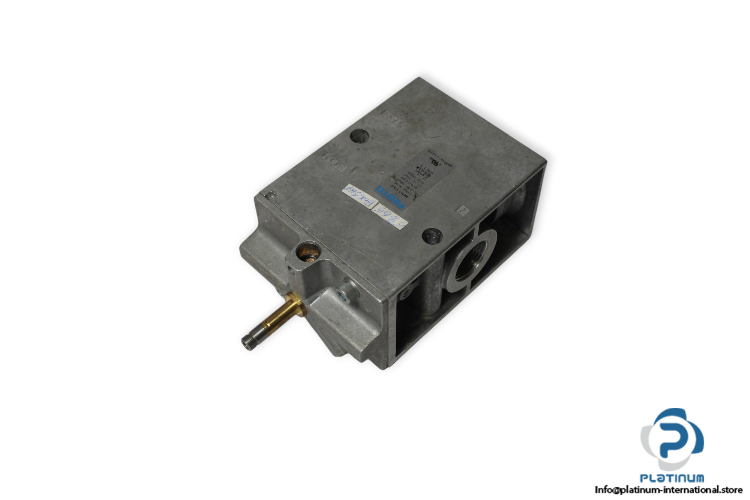

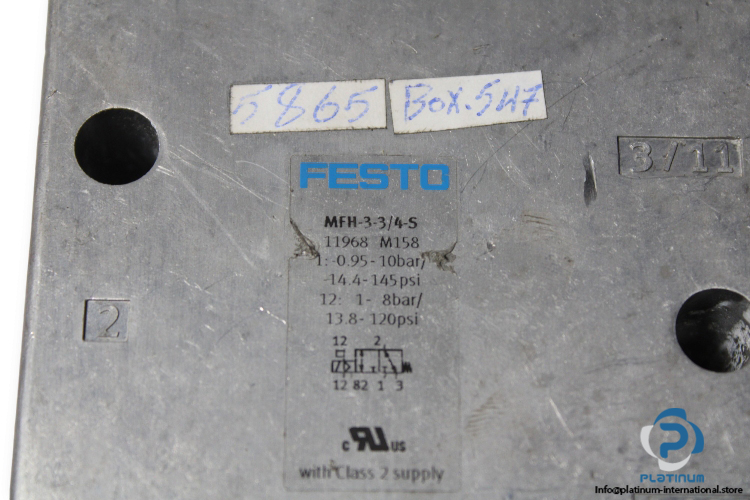

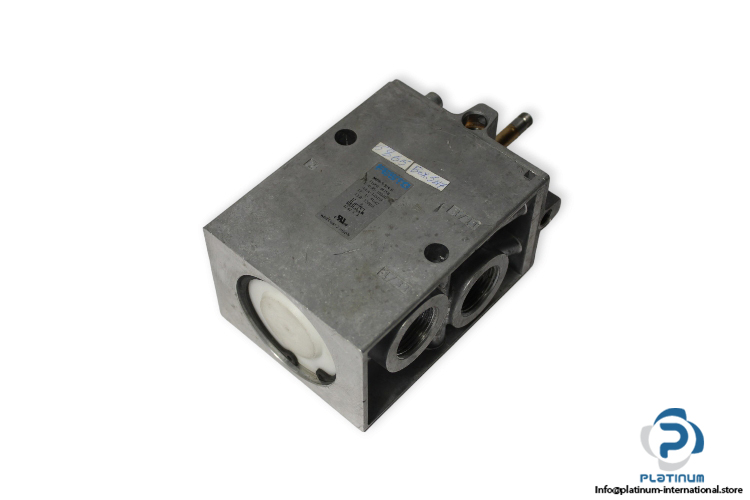

FESTO MFH-3-3/4-S SINGLE SOLENOID VALVE
The FESTO MFH-3-3/4-S is a robust single solenoid valve designed for high-flow pneumatic applications. Engineered with a poppet seat design and monostable 3/2-way function, it offers fast response times and reliable sealing. Constructed from die-cast aluminum, this valve is ideal for demanding industrial environments.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-3-3/4-S
Part No.: 11968
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.95 to 10 bar |
| Pilot Pressure | 1 to 8 bar |
| Nominal Flow Rate | 7500 l/min |
| Pneumatic Connection | G3/4 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 to 50 °C |
