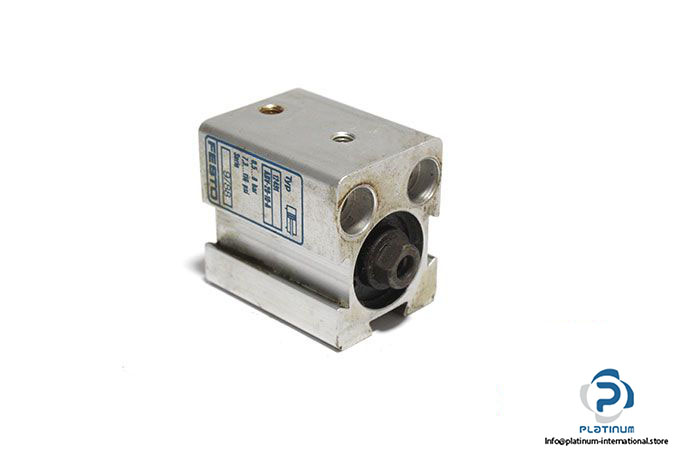

Festo 12491 Short Stroke Cylinder

Manufacturer: FESTO

Type: Double Acting Short Stroke Cylinder

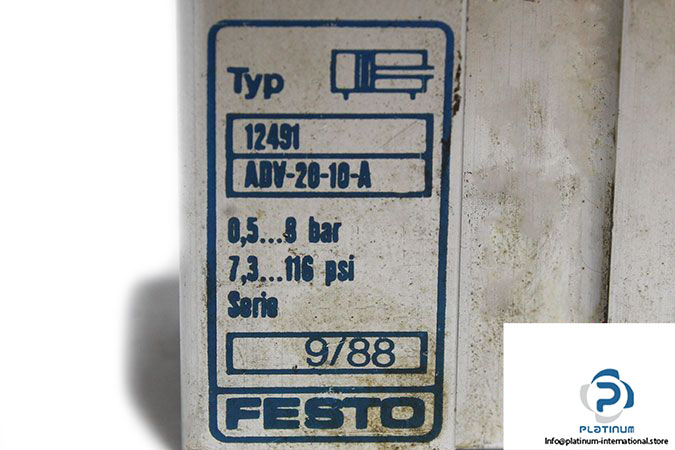

Model: ADV-20-10-A

Part No.: 12491

Materials

   Housing: Anodised aluminium

   Piston rod: Stainless steel

Stroke Length: 10 mm

Piston Diameter: 20 mm

Operating Pressure: 0.5 … 8 bar

Pneumatic Connection: M5

Clamping Force at 6 bar: 175 N

Return Force at 6 bar: 128 N

Mode of operation: Double Acting

Temperature: -20 … 80 °C

Weight: 0.11 kg
