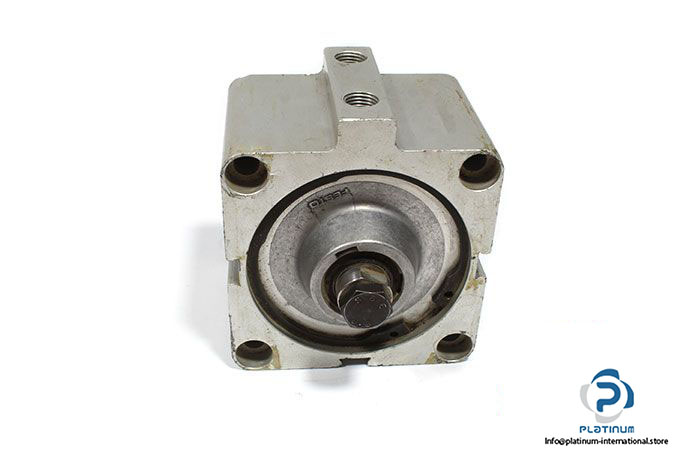

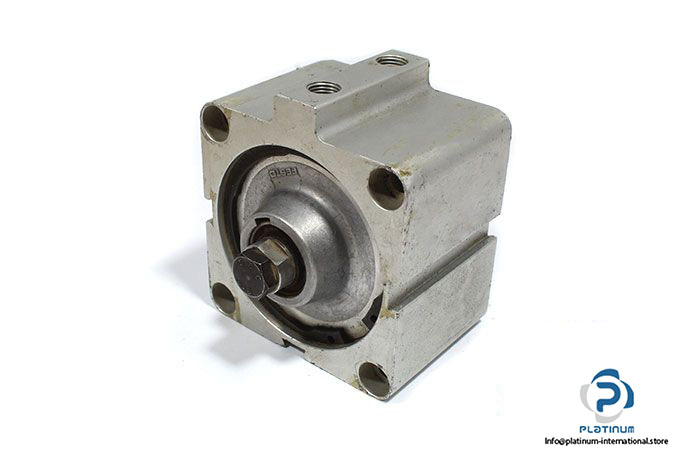

Festo 12493 Short Stroke Cylinder

Manufacturer: FESTO

Type: Double-Acting Short Stroke Cylinder

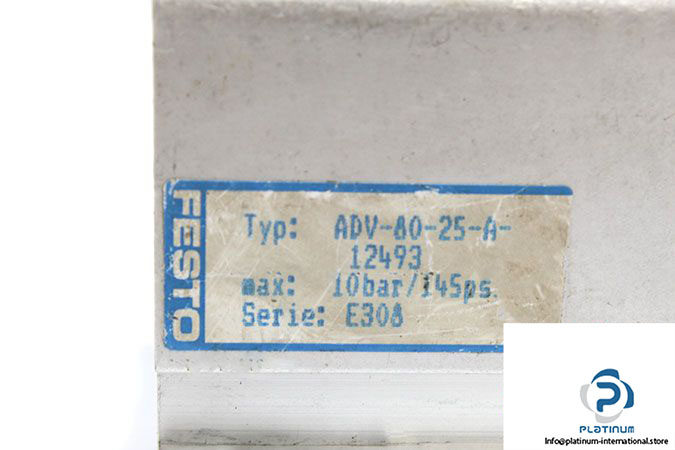

Model: ADV-80-25-A

Part No.: 12493

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 25 mm

Piston Diameter: 80 mm

Piston rod thread: Female thread

Pneumatic Connection: G 1/4

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 1.45 kg
