Festo 130686 Push-IN Connector
Neu
Auf Lager1 EinheitVersandbereit

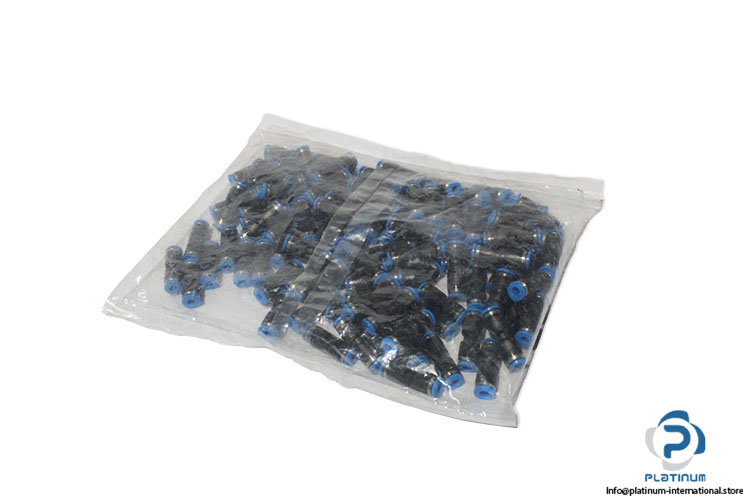

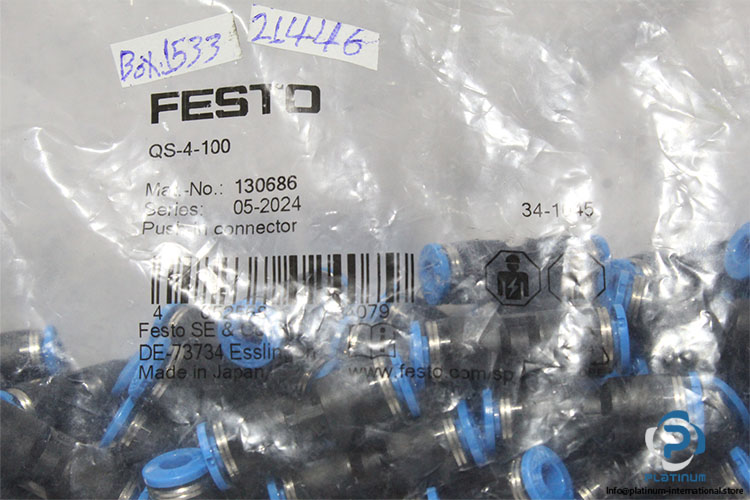

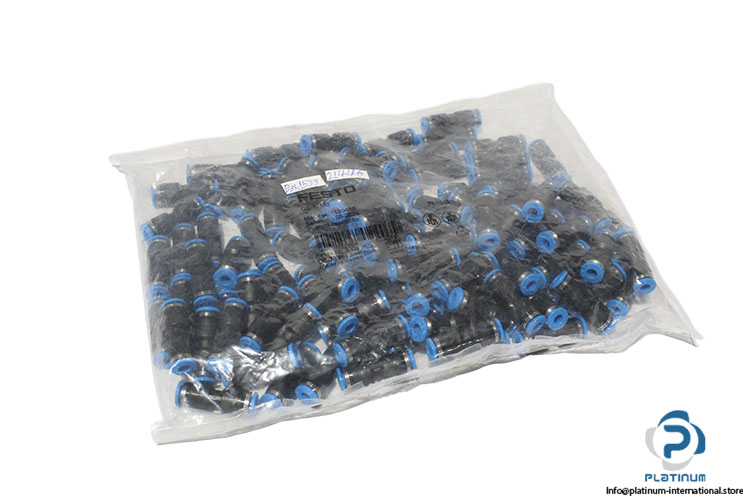

Push-In Connector Compact FESTO push-in connector with straight push-pull design for secure pneumatic tubing connections in compressed air and water systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 130686 |
| Series | QS |
| Fluid | Compressed Air / Water (Liquid, Ice-Free) |
| Design | Straight Push-Pull Principle |
| Nominal Size | 2.8 mm |
| Operating Pressure | -0.95 ... 6 bar / -0.095 ... 1.4 MPa |
| Water Pressure Max. | 0.6 MPa |
| Tubing Insertion Depth | 14.9 mm |
| Pneumatic Connection, Ports 1/2 | For Tubing Outer Diameter Of 4 mm |
| Material | PBT |
| Ambient Temperature | -10 ... 80 °C |
| Items Per Set | 100 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102187 |
| Weight | 0,46 |
