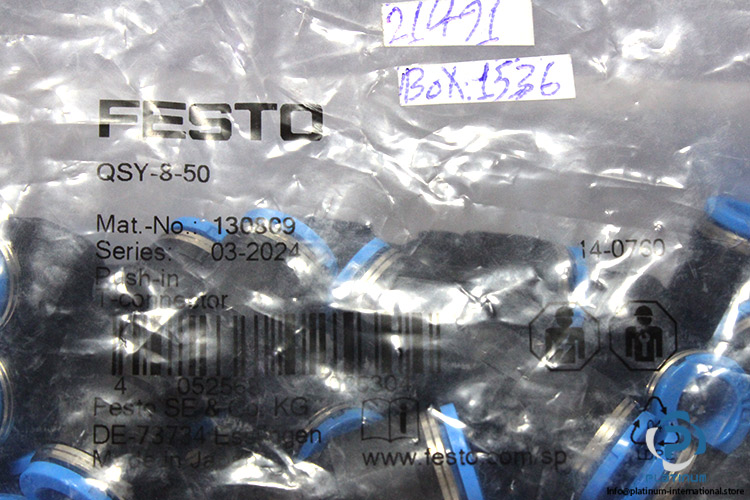

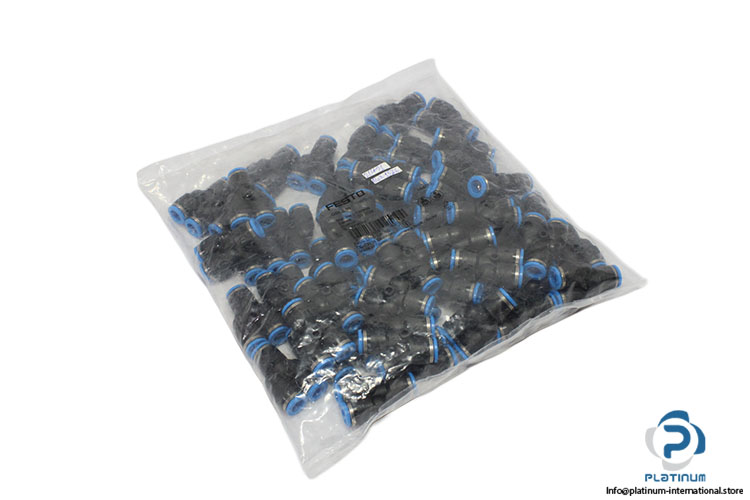

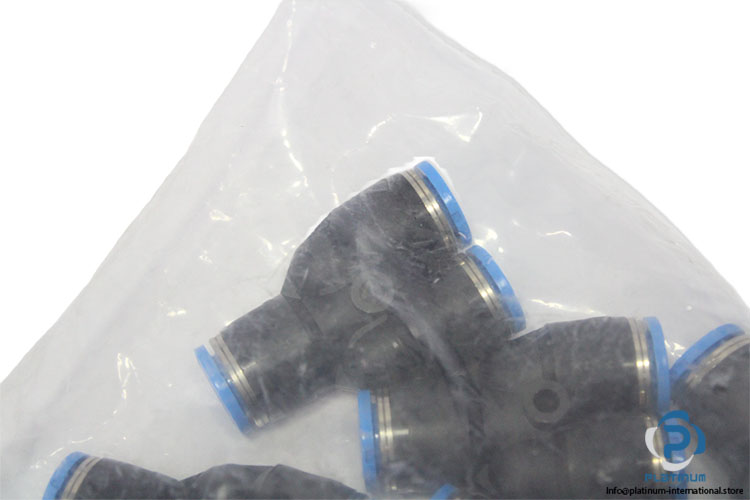

Festo 130809 Push-IN Y-Connector
Neu
Auf Lager1 EinheitVersandbereit
Push-In Y-Connector FESTO QSY-8-50 pneumatic Y-connector with push-pull connection design for compressed air and water applications in industrial automation systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 130809 |
| Series | QSY |
| Fluid | Compressed Air / Water (Liquid, Ice-Free) |
| Design | Y-Shape Push-Pull Principle |
| Nominal Size | 5.7 mm |
| Operating Pressure | -0.95 ... 6 bar / -0.095 ... 1.4 MPa |
| Water Pressure Max. | 0.6 MPa |
| Tubing Insertion Depth | 18.1 mm |
| Outputs No. | 2 |
| Supply Lines No. | 1 |
| Pneumatic Connection, Port 1/2 | For Tubing Outer Diameter Of 8 mm |
| Material | PBT |
| Ambient Temperature | -10 ... 80 °C |
| Items Per Set | 50 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102232 |
| Weight | 0,74 |
