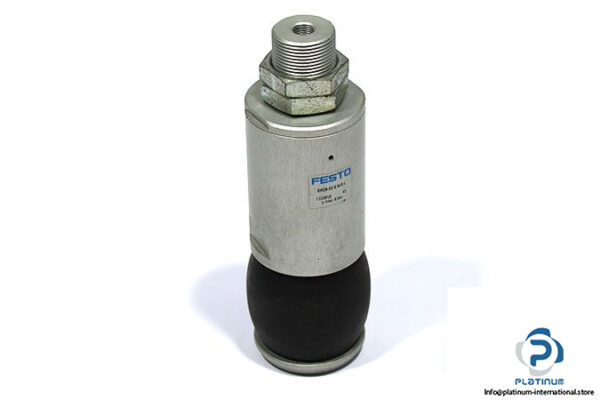

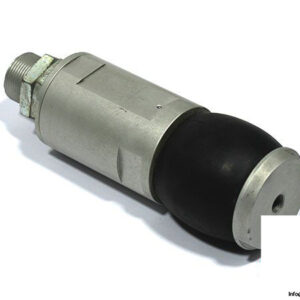

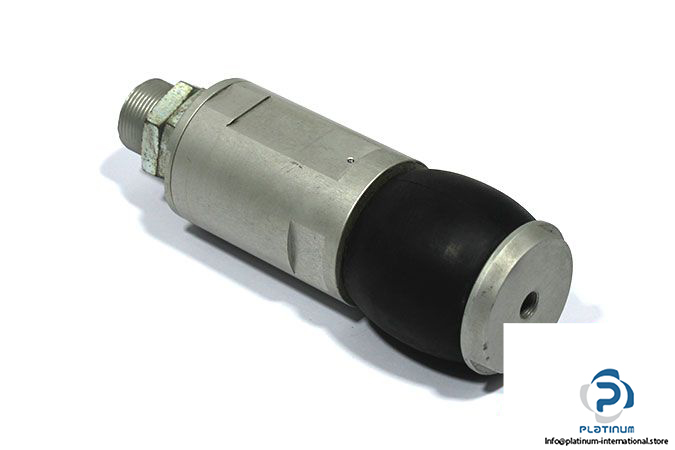

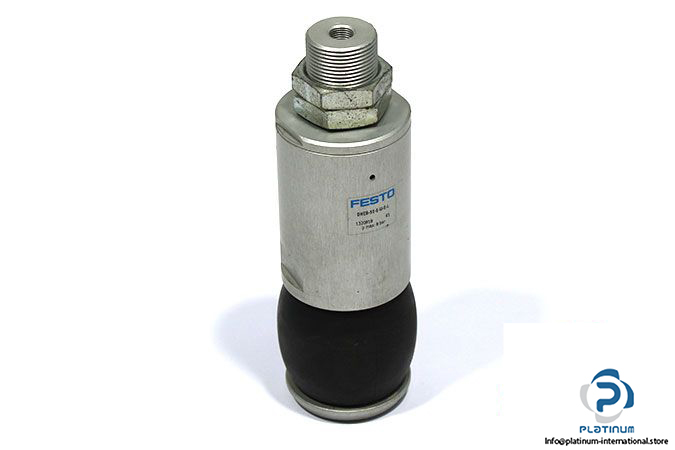

Festo 1320818 Bellows Gripper

Manufacturer: Festo

Type: Bellows Gripper

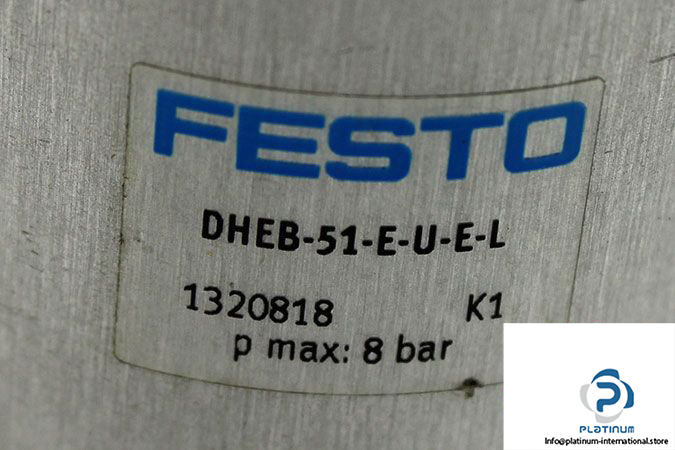

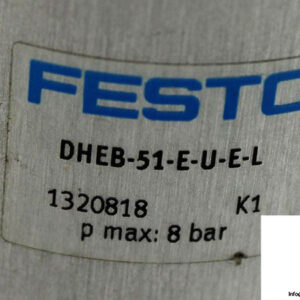

Model: DHEB-51-E-U-E-L

Part No: 1320818

Size: 51

Stroke of Bellows: 18 mm

Diameter to Be Gripped: 54…68 mm

Operating Pressure: 4…8 bar

Design: Contracting Diaphragm, Positively Driven Motion Sequence

Guide: Basic Guide

Mode of Operation: Single-Acting Closed

Position Sensing: For Proximity Sensor

Pneumatic Connection: G1/8”

Material: Aluminum

Ambient Temperature: -5…60 °C

Weight: 0.52 kg
