Festo 1370487 Stepper Motor
Gebraucht
Auf Lager2 EinheitenVersandbereit
stepper motor
The FESTO EMMS-ST-87-M-SE-G2 Stepper Motor delivers precise motion control with a 5.9 Nm holding torque, 550 rpm max speed, and 9.5 A nominal current for industrial applications.2-Phase2005.9500550ControlEncoderHoldingHybridIndustrialIP54LoadMotionmotorNNmPrecisionPulsesradialrpmSteppertechnologyTorqueWith
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

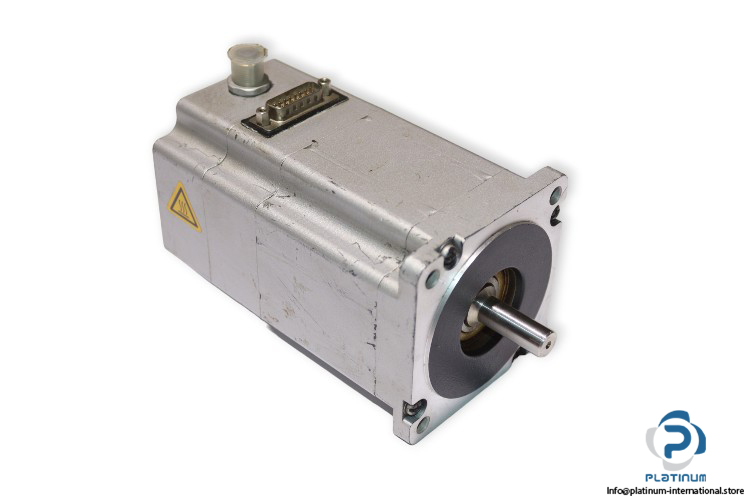

FESTO EMMS-ST-87-M-SE-G2 STEPPER MOTOR
The FESTO EMMS-ST-87-M-SE-G2 Stepper Motor is designed for precision motion control with advanced 2-phase hybrid technology. It offers high performance with a nominal current of 9.5 A, holding torque of 5.9 Nm, and operates at a maximum rotational speed of 550 rpm. Ideal for demanding industrial applications, this motor features reliable load handling and protection with IP54 class for enhanced durability.

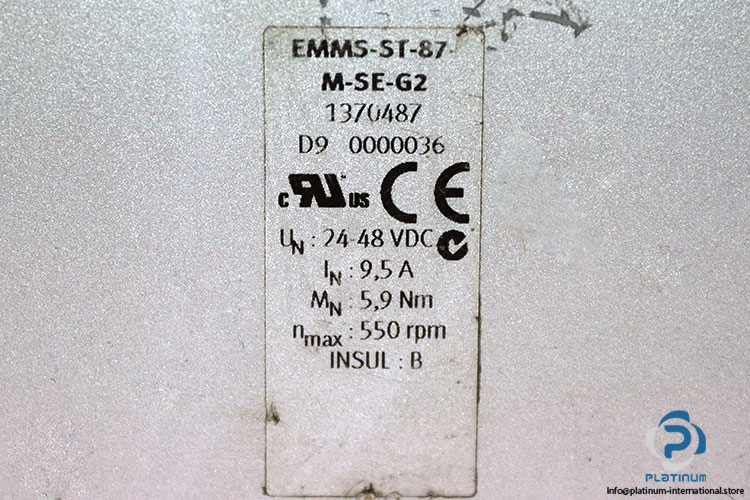

Manufacturer: FESTO
Type: STEPPER MOTOR
Model: EMMS-ST-87-M-SE-G2
Part No: 1370487
Technical Specifications
- 2-Phase Hybrid Technology
- Nominal Voltage: 24 to 48 V DC
- Nominal Current: 9.5 A
- Max. Rotational Speed: 550 rpm
- Holding Torque: 5.9 Nm
- Stepper Angle: 1.8° ±5%
- Radial Load on Shaft: 200 N
- Axial Load on Shaft: 65 N
- Mass Moment of Inertia of Rotor: 1.9 kgcm²
- Protection Class: IP54
- Flange Dimension: 87 mm
Encoder Specifications
- Operating Voltage: 5 V DC
- Pulses/Revolution: 500 1/rev
- Weight with Encoder: 3.2 kg
- Ambient Temperature: “10 / +50 °C
