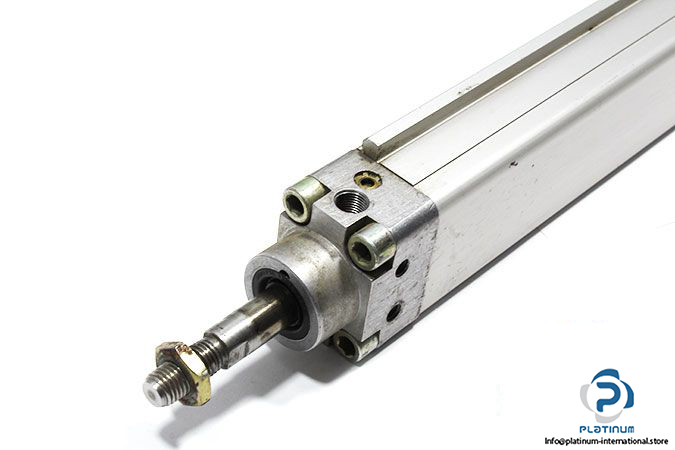

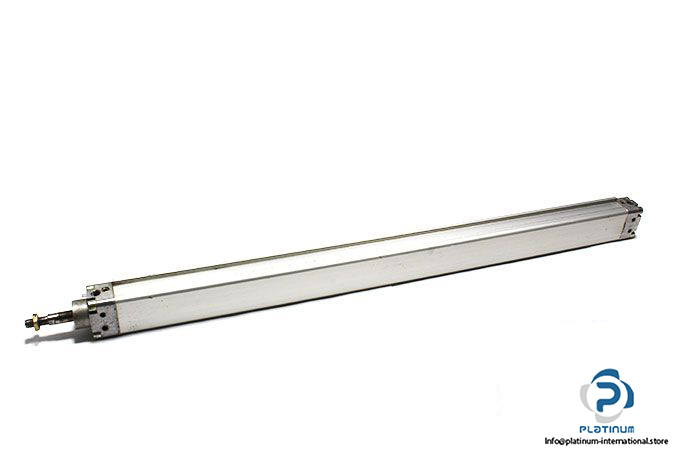

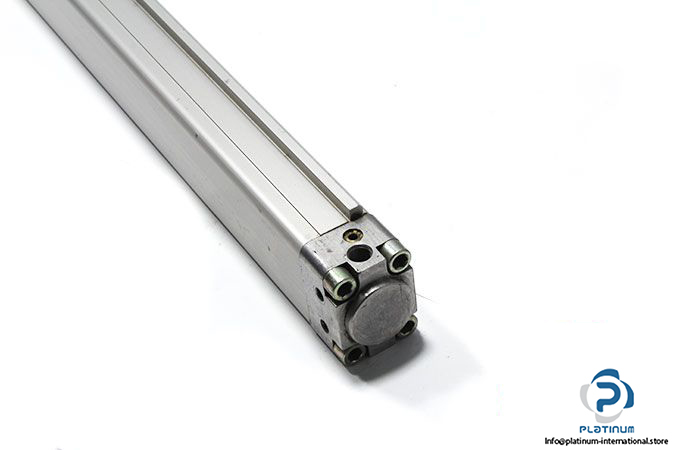

Festo 14040 Pneumatic Flat Cylinder

Manufacturer: FESTO

Type: Pneumatic Flat Cylinder

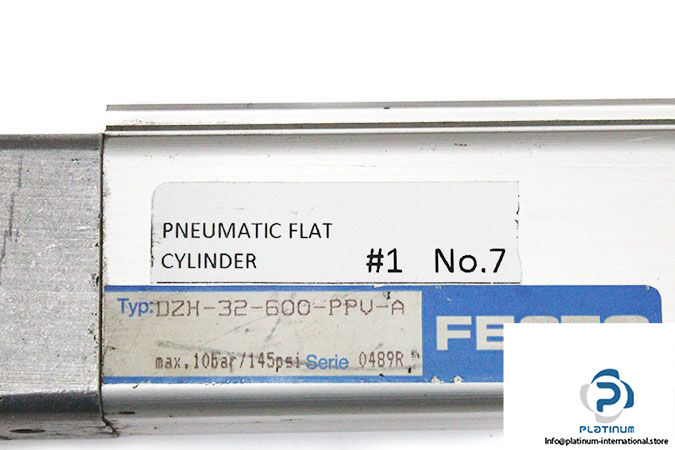

Model: DZH-32-600-PPV-A

Part No.: 14040

Symbol: 00991235

Acting Type: Double- acting

Design: Flat

Working Pressure: 0.6 bar … 10 bar

Bore Size: 32 mm

Stroke: 600 mm

Position sensing: For proximity sensor

Operating medium: Compressed air as per ISO 8573-1:2010[7:4:4]

Cushioning: Pneumatic cushioning, adjustable at both ends, 19 mm length

Theoretical force@ 6 bar: 415 N retracting, 483 N advancing

Type of Mounting: Optionally: With accessories, With internal thread

Pneumatic Connections: G 1/8

Ambient Temperature: -20°C…80°C

Housing / Cover materials: Aluminum

Weight: 2.28 kg
