Festo 14322 25X400 ISO Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
ISO Cylinder
Festo DSNU-25-400-PPV-A double-acting ISO cylinder with 400 mm stroke, 25 mm piston, and G1/8 connection. Designed for reliable pneumatic automation with robust stainless steel construction.ActingAutomationCylinderDoubleDSNU-25-400-PPV-AFestoHighIndustrialISOPneumaticPrecisionstainlessSteel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

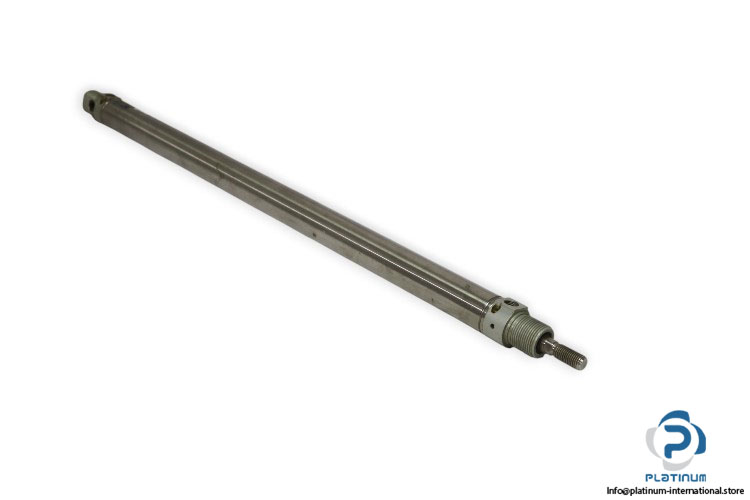

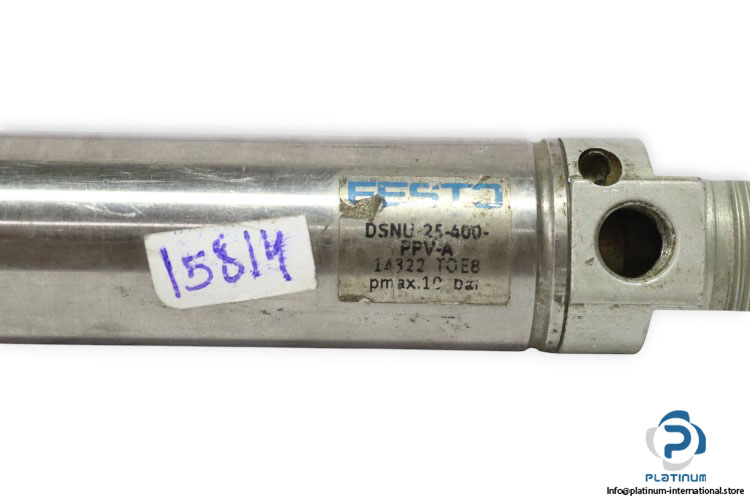

Festo ISO Cylinder DSNU-25-400-PPV-A
The Festo DSNU-25-400-PPV-A is a high-performance ISO cylinder engineered for precise linear motion in pneumatic automation systems. With a 400 mm stroke length and robust stainless steel construction, it ensures durability, reliability, and consistent double-acting operation under demanding industrial conditions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-400-PPV-A
Part No.: 14322
Ref. Code: TOE8
| Stroke Length | 400 mm |
| Piston Diameter | 25 mm |
| Rod Diameter | 10 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Wrought Aluminum Alloy, Colorless Anodized |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-Alloy Stainless Steel |
| Material Cylinder Barrel | High-Alloy Stainless Steel |
