Festo 14322 25X60 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO CYLINDER
Compact and durable ISO pneumatic cylinder with 60 mm stroke and 25 mm piston. Ideal for automation systems requiring smooth, adjustable motion and high-pressure resistance.2560ActingActuatorAdjustableAirAutomationCompressedCushioningCylinderDoubleDSNU-25-60-PPV-AFestoG1/8IndustrialISOLinearmmMotionPneumaticPortstainlessSteelStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

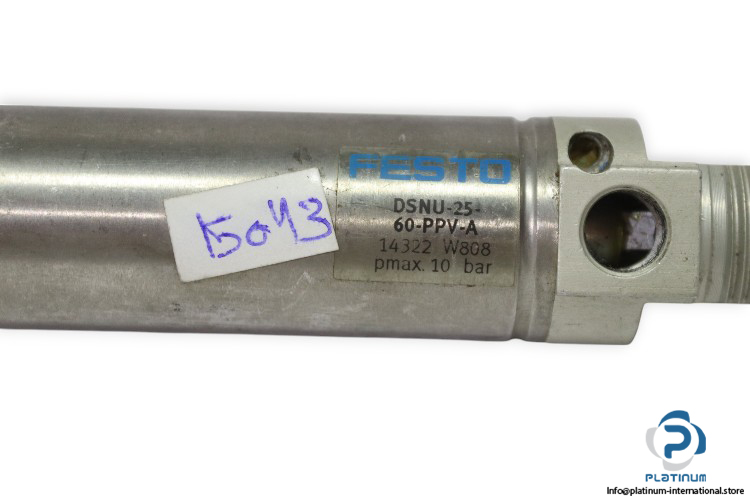

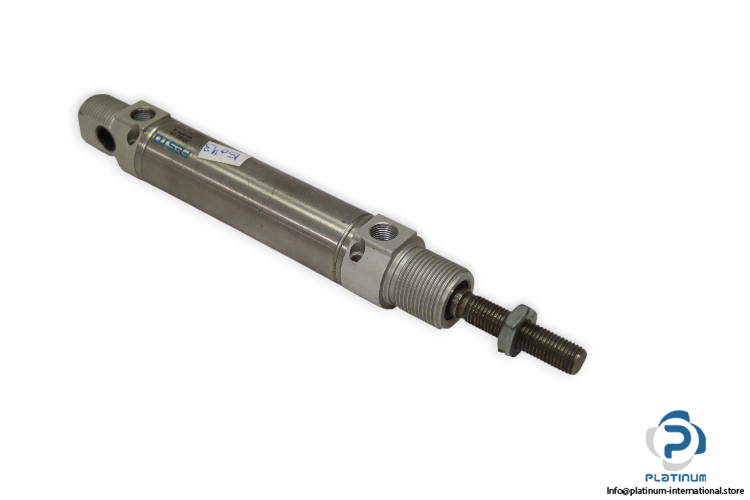

FESTO DSNU-25-60-PPV-A ISO CYLINDER
High-performance ISO cylinder engineered for industrial automation systems. This double-acting pneumatic actuator delivers precise linear motion with high durability and smooth operation, making it ideal for demanding applications.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-60-PPV-A
Part No.: 14322
Code: W808
| Stroke Length | 60 mm |
| Piston Diameter | 25 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Material Cover | Wrought Aluminum Alloy |
| Material Seals | NBR |
| Material Piston Rod | High-Alloy Stainless Steel |
| Material Cylinder Barrel | High-Alloy Stainless Steel |
