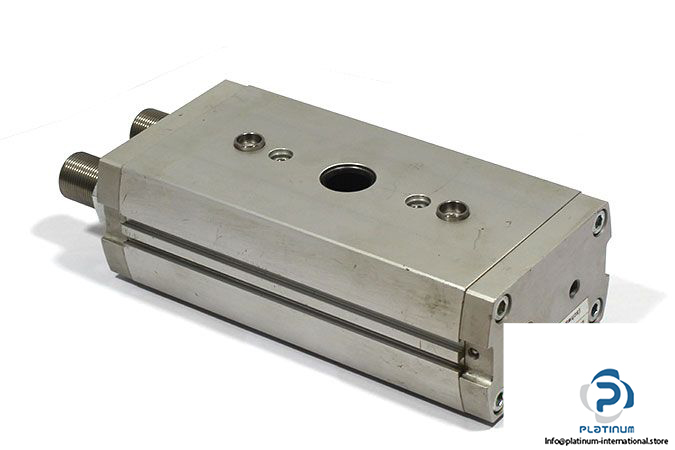

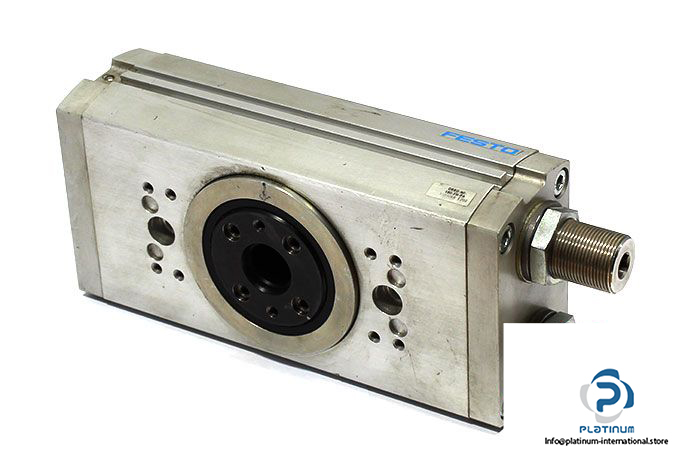

Festo 1503269 Rotary Actuator

Manufacturer: Festo

Type: Rotary Actuator

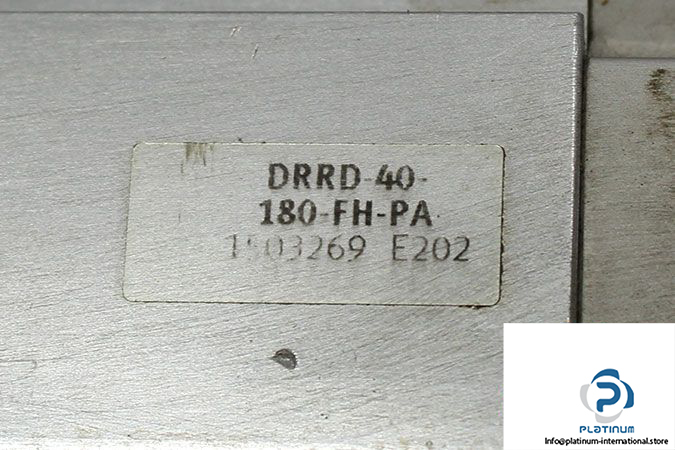

Model: DRRD-40-180-FH-PA

Part No.: 1503269

Size: 40

Cushioning Angle: 23 deg

Range of Swivel Angle: 0…180 deg

Swivel Angle: 180 deg

Operating Pressure: 3…8 bar

Fluid: Air

Design: Gear Rack/Pinion

Torque at 6 bar: 24.1 Nm

Pneumatic Connection: G1/8”

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 6.17 kg
