Festo 150981 Single Solenoid Valve
Gebraucht
Auf Anfrage verfügbar
SINGLE SOLENOID VALVE
FESTO MFH-5/2-D-1-C single solenoid valve with NUMATICS 228-777 A coil offers 5/2-way control, high flow rate, and reliable electrical actuation for pneumatic systems.228-7775/2-WayaAircoilFestoIndustrialMFH-5/2-D-1-CMonostableNumaticsPneumaticSinglesolenoidSub-BaseValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

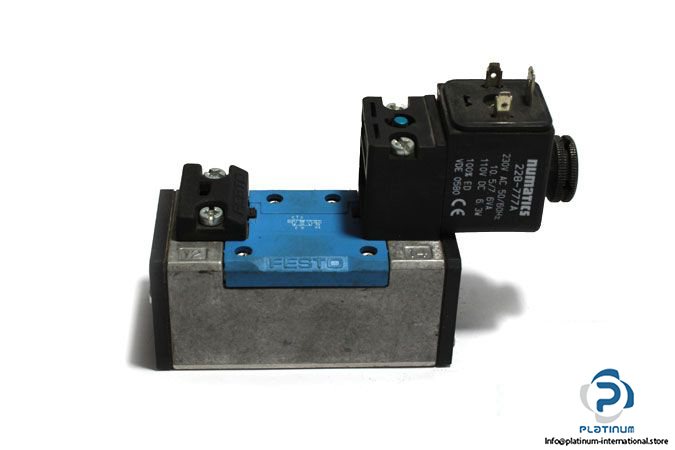

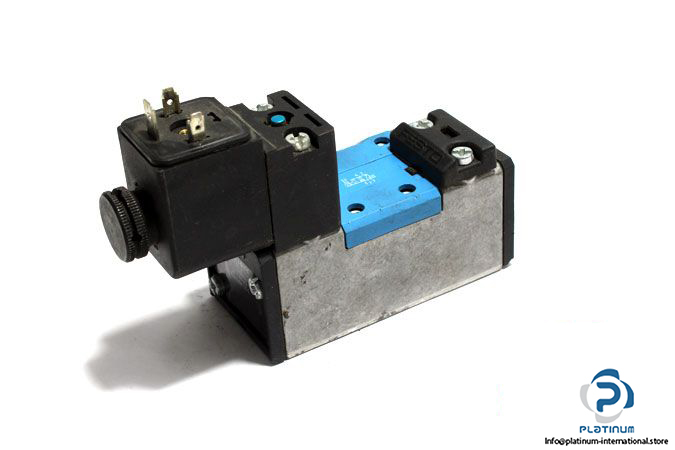

FESTO MFH-5/2-D-1-C SINGLE SOLENOID VALVE WITH NUMATICS COIL
The FESTO MFH-5/2-D-1-C is a robust single solenoid valve engineered for efficient control of pneumatic systems. Built with a piston gate design and paired with a high-performance NUMATICS 228-777 A solenoid coil, this valve ensures consistent, reliable operation across a wide pressure and temperature range.
Manufacturer: FESTO
Type: Single Solenoid Valve

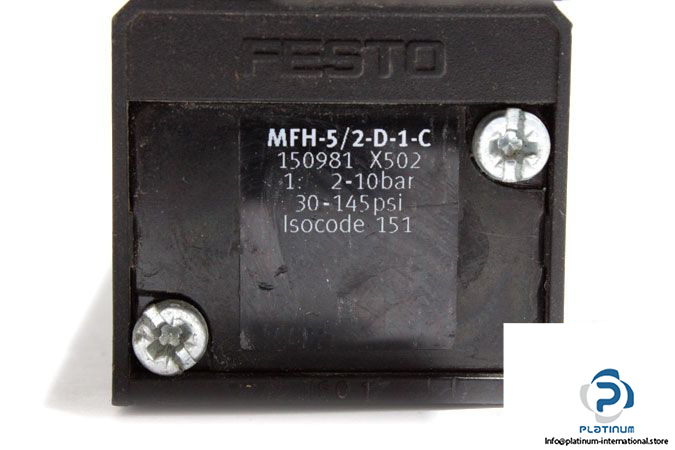

Model: MFH-5/2-D-1-C
Part No.: 150981
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston gate valve |
| Valve Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 / 10 bar |
| Nominal Flow Rate | 1200 l/min |
| Material | Die-cast aluminium |
| Pneumatic Connection | Sub-base |
| Ambient Temperature | -5 / 50 °C |

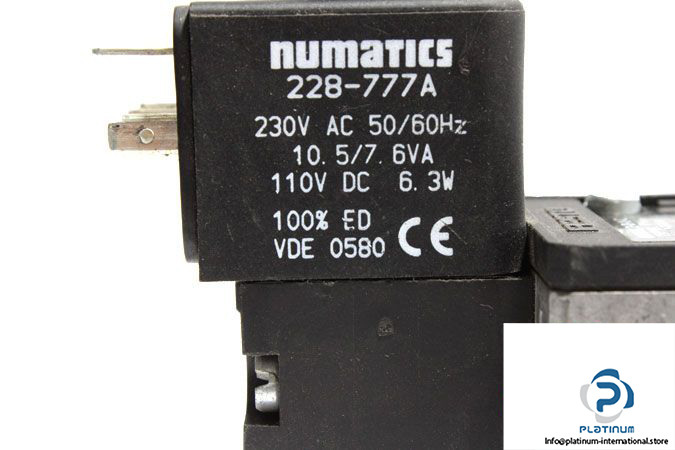

| Attachment | NUMATICS 228-777 A SOLENOID COIL |
| Supply Voltage | 230 V AC / 110 V DC |
| Frequency | 50 ... 60 Hz |
| Power Consumption | 6.3 W / 5 / 7.6 VA |
| Protection Class | IP65 |
