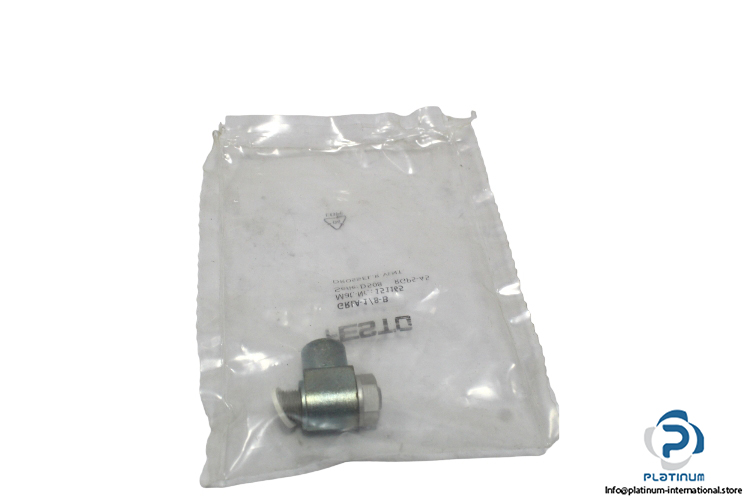

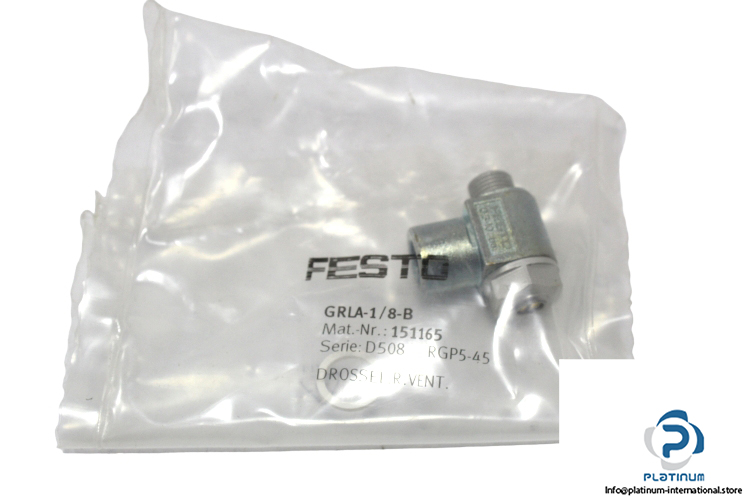

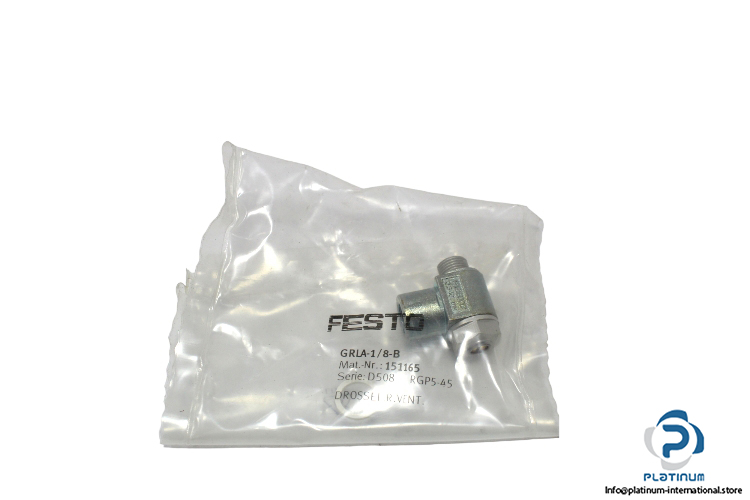

Festo 151165 ONE-WAY Flow Control Valve
Neu
Auf Lager3 EinheitenVersandbereit
FESTO GRLA-1/8-B Einweg-Durchflussregelventil mit G1/8-Anschlüssen, verstellbarer Schraube und hoher Durchflussleistung für pneumatische Systeme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO GRLA-1/8-B ONE-WAY FLOW CONTROL VALVE
The FESTO GRLA-1/8-B is a compact, precision-engineered one-way flow control valve designed to regulate pneumatic air flow in industrial automation systems. With a screw-in mounting style and adjustable slotted screw, it offers smooth, reliable performance under varying conditions.
Manufacturer: FESTO
Type: One-Way Flow Control Valve
Model: GRLA-1/8-B
Part No.: 151165
| Working Pressure | 0.3 / 10 bar |
| Standard Nominal Flow Rate (Flow Control Direction) | 340 l/min |
| Standard Nominal Flow Rate (Blocked Direction) | 260 ... 420 l/min |
| Pneumatic Connection 1 | G1/8 |
| Pneumatic Connection 2 | G1/8 |
| Adjustment | Slotted Screw |
| Mounting | Screw-In |
| Fluid Temperature Range | -10 / 60 °C |
