Festo 151993 Clamping Module
Neu
Auf Lager2 EinheitenVersandbereit
CLAMPING MODULE
FESTO EV-10/30-3 clamping module with 3 mm stroke, single-acting mode, and durable die-cast aluminum body for pneumatic applications.air-poweredAluminumClampClampingconnectionDevicedie-castEV-10/30-3FestoIndustrialM3ModulePneumaticSingle-ActingSystem
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

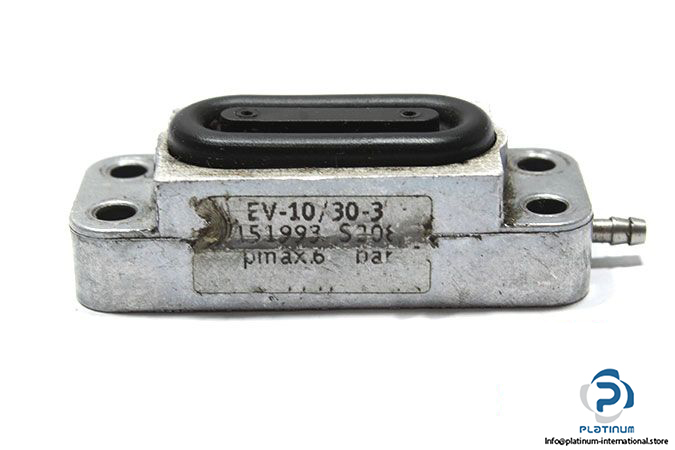

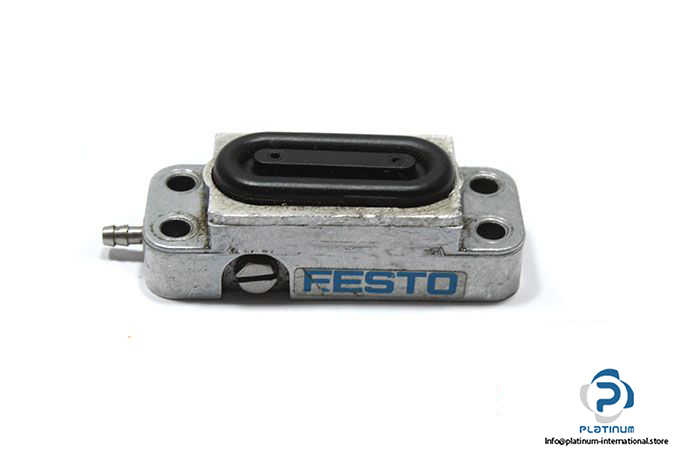

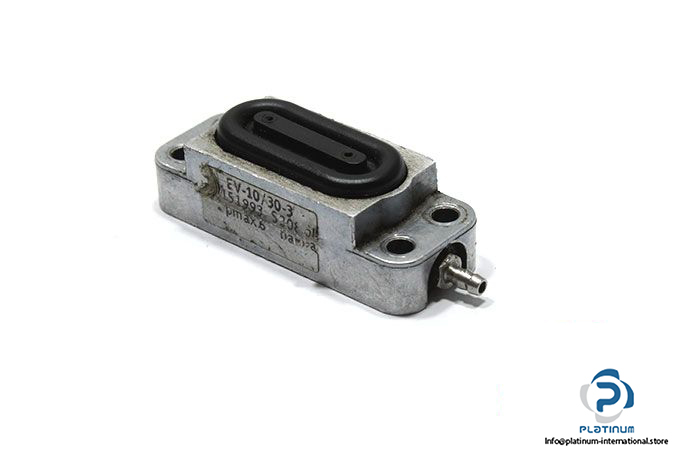

FESTO EV-10/30-3 CLAMPING MODULE
The FESTO EV-10/30-3 is a precision-engineered clamping module ideal for high-accuracy pneumatic holding applications. With a compact stroke, high-pressure tolerance, and robust aluminum construction, it provides dependable single-acting operation in a wide temperature range.
Manufacturer: FESTO
Type: Clamping Module
Model: EV-10/30-3
Part No.: 151993
| Fluid | Air |
| Stroke | 3 mm |
| Operating Pressure Max. | 6 bar |
| Mode of Operation | Single-acting |
| Pneumatic Connection | M3 |
| Material | Die-cast aluminium |
| Ambient Temperature | -20 / 80 °C |
