Festo 15223 Linear Actuator
Gebraucht
Auf Lager1 EinheitVersandbereit
199,99$
LINEAR ACTUATOR
FESTO DGO-20-250-PPV-A-B pneumatic linear actuator, 20 mm piston diameter, 250 mm stroke, double-acting with magnet, G1/8 connection, and 1.6“7 bar pressure range.1522320250ActuatorAluminumconnectionCylinderDGO-20-250-PPV-A-Bdouble-actingFestoG1/8LinearMagnetmmPistonPneumaticStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

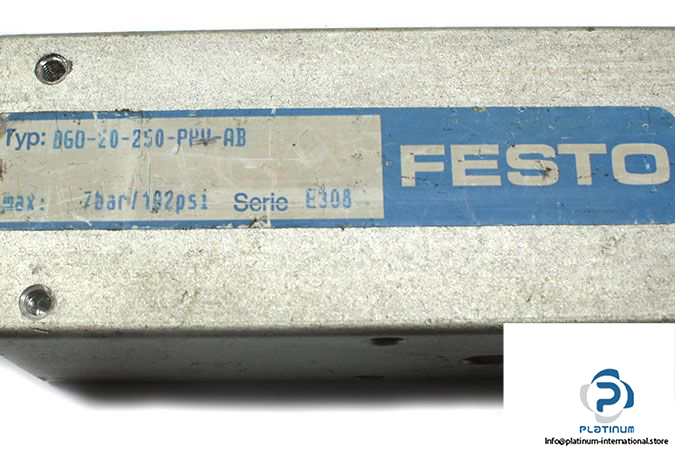

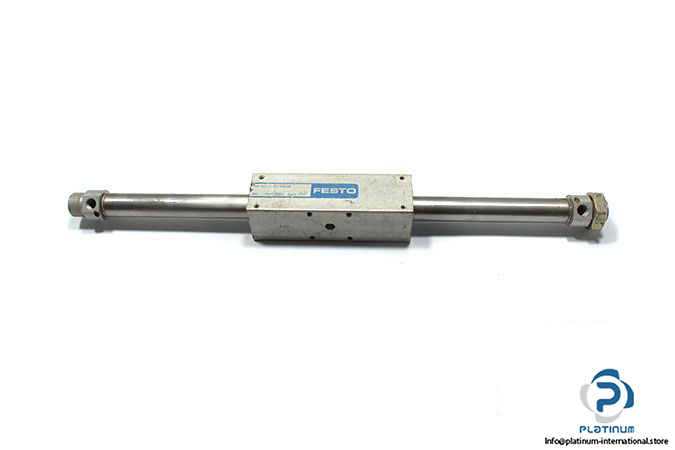

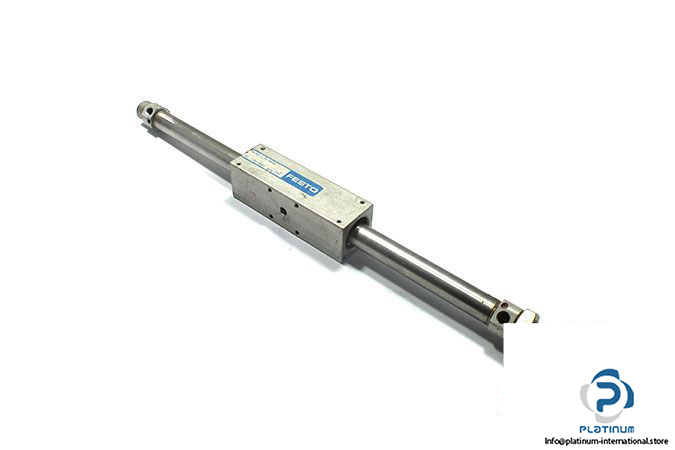

FESTO DGO-20-250-PPV-A-B Linear Actuator
The FESTO DGO-20-250-PPV-A-B is a high-quality pneumatic linear actuator engineered for precision motion control and efficient automation. Designed with durable aluminum construction and equipped with a magnetic piston for accurate position sensing, this double-acting actuator delivers reliable performance under demanding conditions.
Manufacturer: FESTO
Type: Linear Actuator
Model: DGO-20-250-PPV-A-B
Part No.: 15223
| Material | Aluminum |
| Piston Diameter | 20 mm |
| Stroke | 250 mm |
| Operating Pressure | 1.6 / 7 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air |
| Theoretical Force at 6 bar, Retracting | 188 N |
| Ambient Temperature | -20 / 60 °C |
| Pneumatic Connection | G1/8 |
| Magnet | With magnet |
