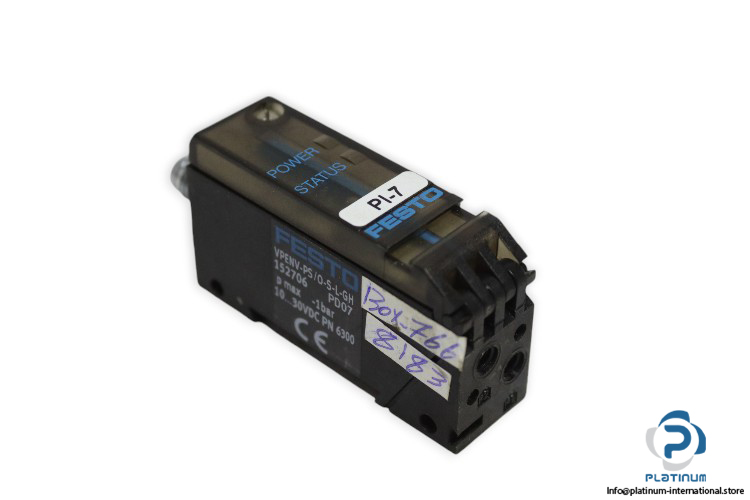

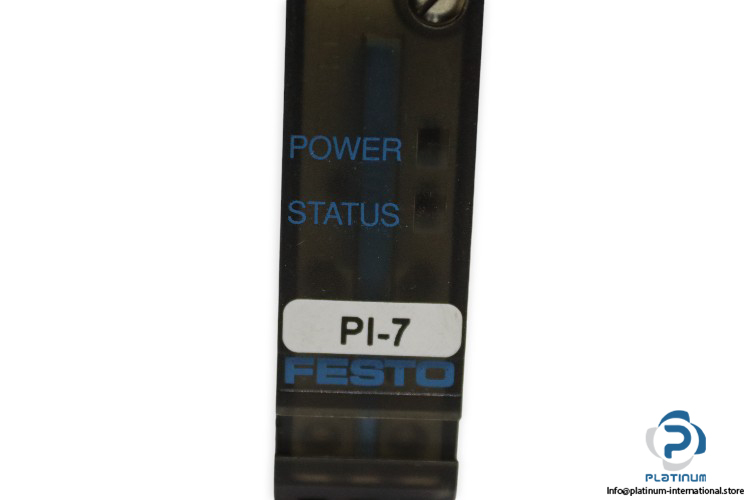

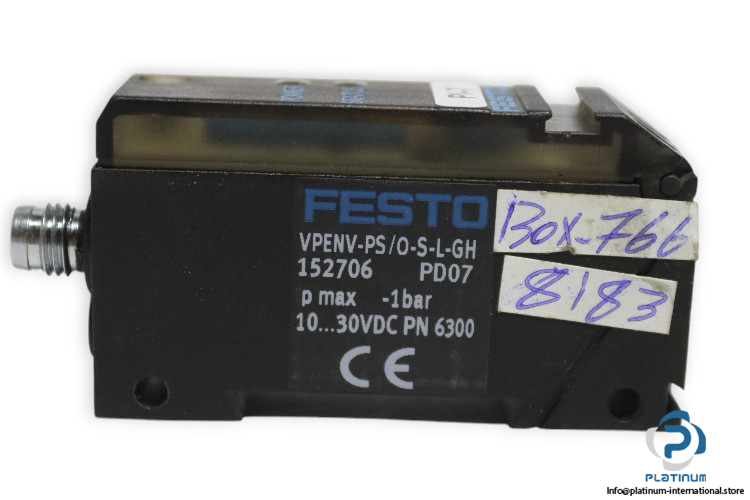

Festo 152706 Vacuum Switch

Manufacturer: FESTO
Type: Vacuum Switch
Model: VPENV-PS/O-S-L-GH
MRN: 152706

Measured variable: Differential pressure
Measurement method: Electronic differential pressure switch
Switching element function: Changeover switch Polarity
protected for operating voltage: Ready status display Green LED
Hysteresis adjustment range: 0,025 – 0,5 bar
Operating pressure: -1 – 1 bar
Operating voltage: DC 10 – 30 V
Max. output current: 130 mA
Switch output: PNP Operating
medium: Compressed air
Protection class: IP65
Ambient temperature: 0 – 50 °C
Pressure measuring range: -1 – 0 bar
