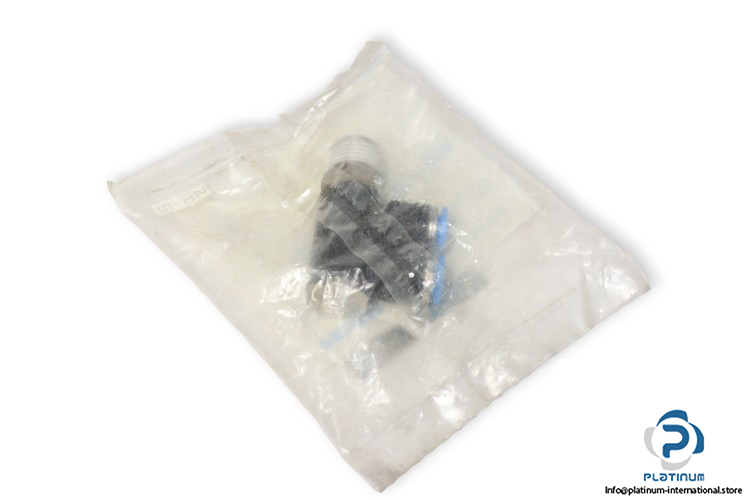

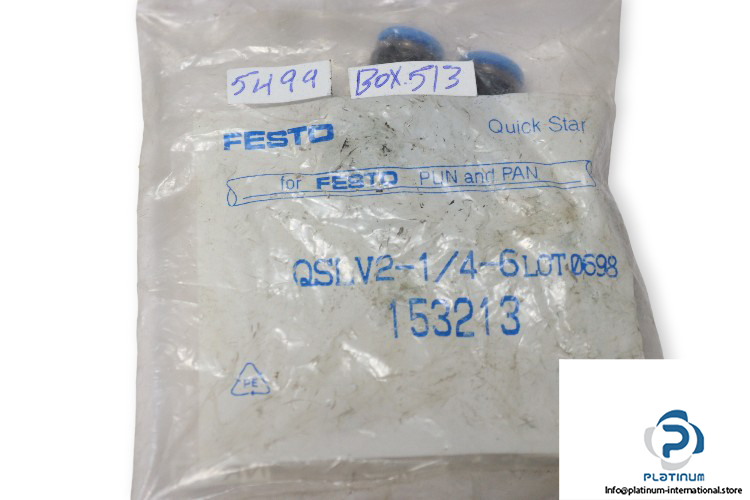

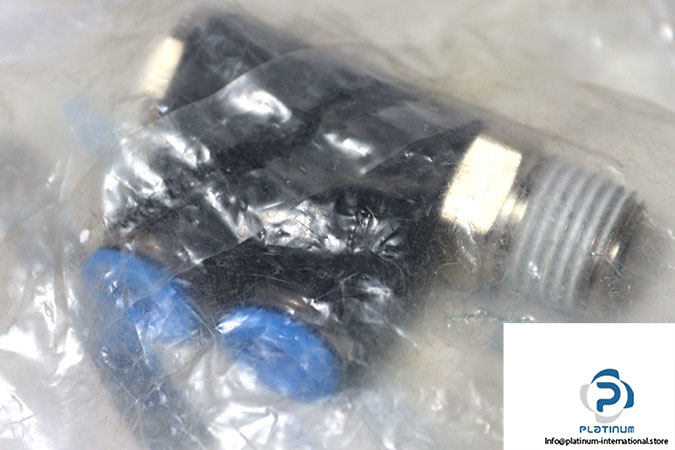

Festo 153213 Multiple Distributor

Manufacturer: FESTO
Type: Multiple distributor
Model: QSLV2-1/4-6
Part No.: 153213

Nominal width: 3.2 mm
Type of seal on screwed plug: Coating
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.95 bar … 6 bar
Temperature-dependent operating pressure: -0.95 bar … 14 bar
Operating medium: Compressed air
Ambient temperature: -10 °C … 80 °C
Nominal tightening torque: 9 Nm
Housing material: PBT
Hollow bolt material: Brass, nickel-plated
Port size: 1/4″ & 6 mm
