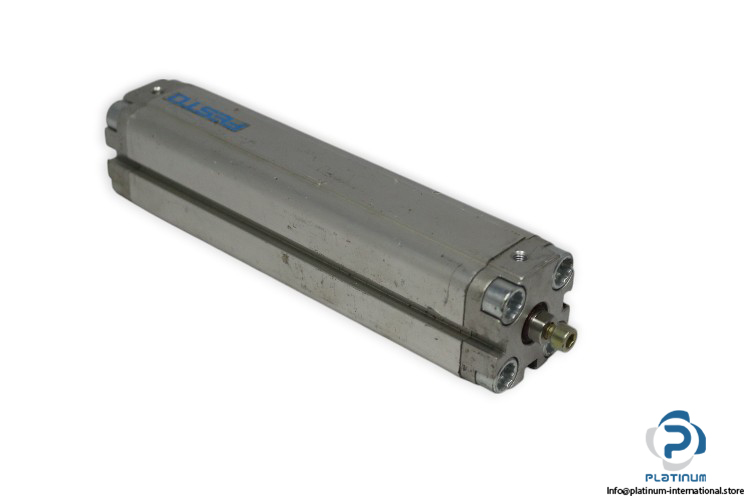

Festo 156003 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder

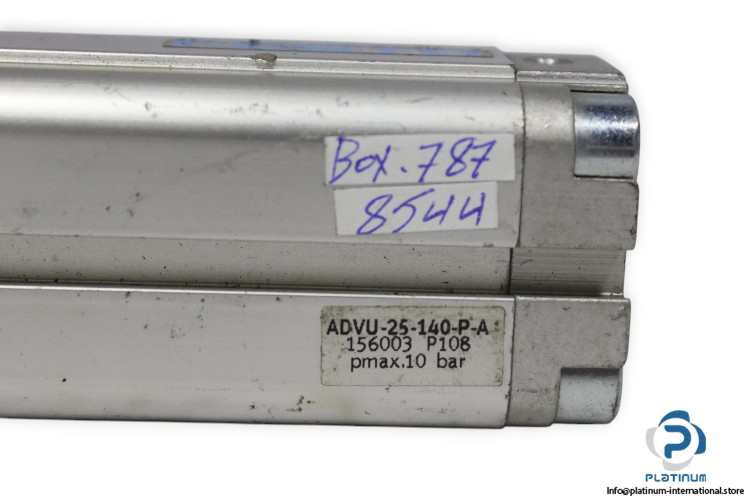

Model: ADVU-25-140-P-A
Part No.: 156003

Stroke Length: 140 mm
Piston Diameter: 25 mm
Piston rod thread: Female
Theoretical force at 6 bar, advancing: 295 N
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Piston rod at one end
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy
Pneumatic Connection: 5 mm
Temperature: -20 … 80 °C
