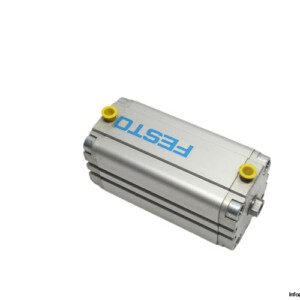

Festo 156006 Compact Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
compact cylinder
The Festo Compact Cylinder ADVU-50-100-P-A (Part No. 156006) features 100 mm stroke, 50 mm piston diameter, and double-acting operation, ideal for industrial pneumatic systems.
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO COMPACT CYLINDER

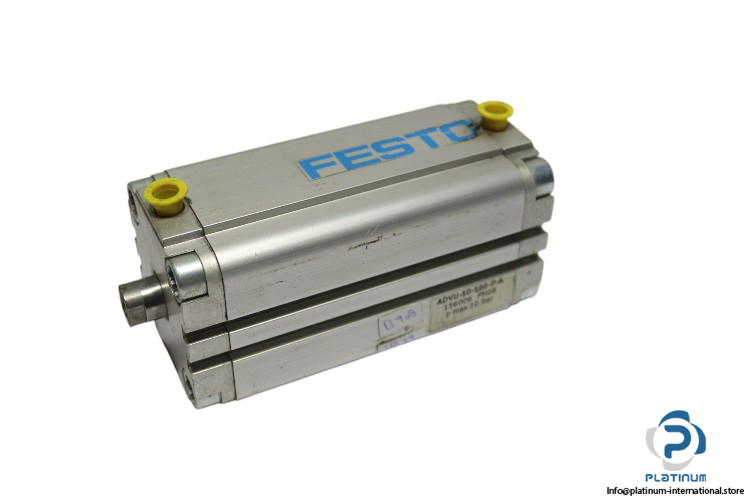

The Festo Compact Cylinder (Model: ADVU-50-100-P-A, Part No. 156006) is designed for efficient and reliable operation in various industrial applications. It features a 100 mm stroke length and 50 mm piston diameter, with a female-threaded piston rod. The cylinder operates with double action and provides proximity sensing for precise position detection.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADVU-50-100-P-A
Part No.: 156006
Technical Specifications
- Stroke Length: 100 mm
- Piston Diameter: 50 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature: -20 to 80 °C
