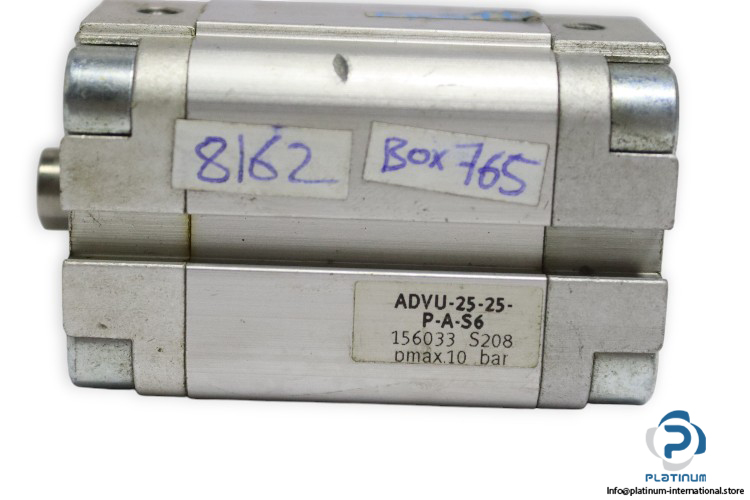

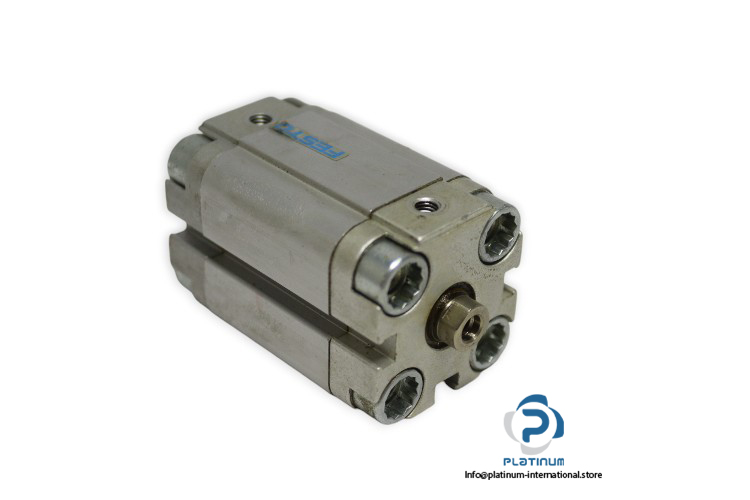

Festo 156033 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder
Model: ADVU-25-25-P-A-S6
Part No.: 156033

Stroke Length: 25 mm
Piston Diameter: 25 mm
Piston rod thread: Female
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Heat-resistant seals max. 120°C
Cover material: Wrought aluminum alloy
Piston rod material: High-alloy stainless steel
Pneumatic Connection: 5 mm
Temperature: -20 … 80 °C
