Festo 156255 Compact Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
Compact Cylinder
The Festo AEVU-40-10-PA-S6 Compact Cylinder features a 10 mm stroke length, 40 mm piston diameter, and heat-resistant design, providing reliable performance in industrial pneumatic systems.1040ActuatorAEVU-40-10-PA-S6CompactconnectionCushioningCylinderdiameterFestoFlexibleG1/8heat-resistantLengthmmPistonPneumaticSingle-ActingStroke
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

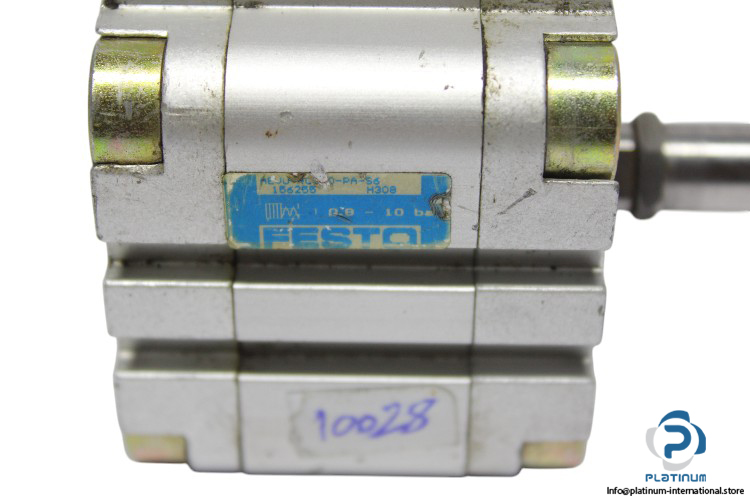

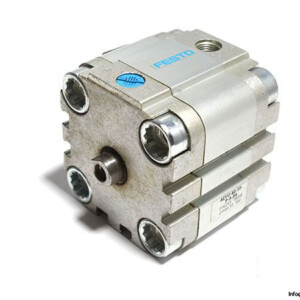

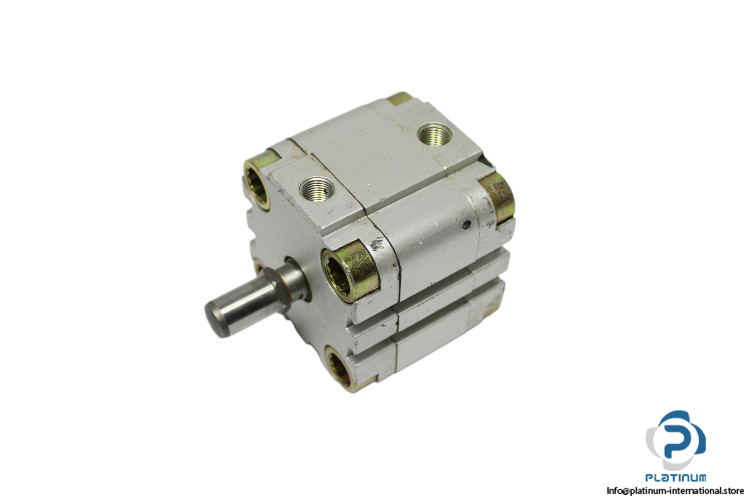

Festo AEVU-40-10-PA-S6 Compact Cylinder
The Festo AEVU-40-10-PA-S6 Compact Cylinder is a high-performance pneumatic actuator designed for space-saving applications. With a durable stainless steel piston rod and an aluminum alloy cylinder tube, this single-acting cylinder ensures reliable operation even in demanding environments.
Manufacturer: Festo
Type: COMPACT CYLINDER
Model: AEVU-40-10-PA-S6
Part No.: 156255
Materials:
This compact cylinder is ideal for high-precision applications requiring a durable and space-efficient actuator with excellent pressure handling capabilities.
| Stroke Length | 10 mm |
| Piston Diameter | 40 mm |
| Piston Rod End | Female thread |
| Operating Pressure | 0.8 to 10 bar |
| Mode of Operation | Single-acting |
| Cushioning | Flexible cushioning rings/plates at both ends |
| Position Sensing | For proximity sensing |
| Variants | Heat resistant up to 120 °C |
| Pneumatic Connection | G1/8 |
| Piston Rod | High alloy stainless steel |
| Cylinder Tube | Wrought Aluminum alloy |
