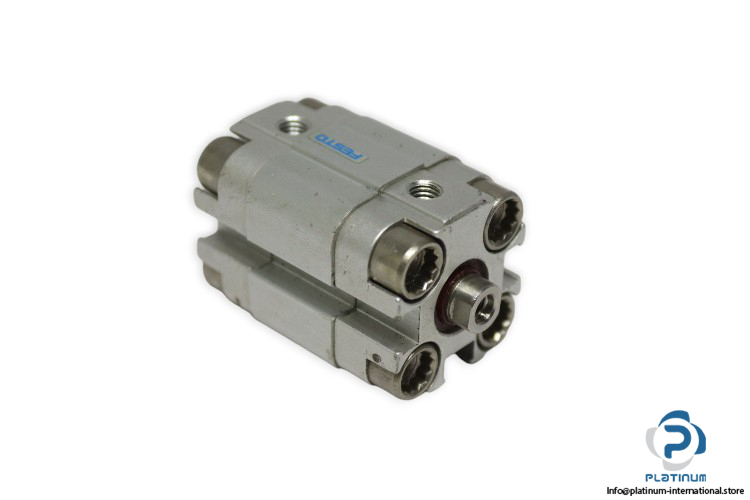

Festo 156507 Compact Cylinder

Manufacturer: FESTO
Type: Compact Cylinder

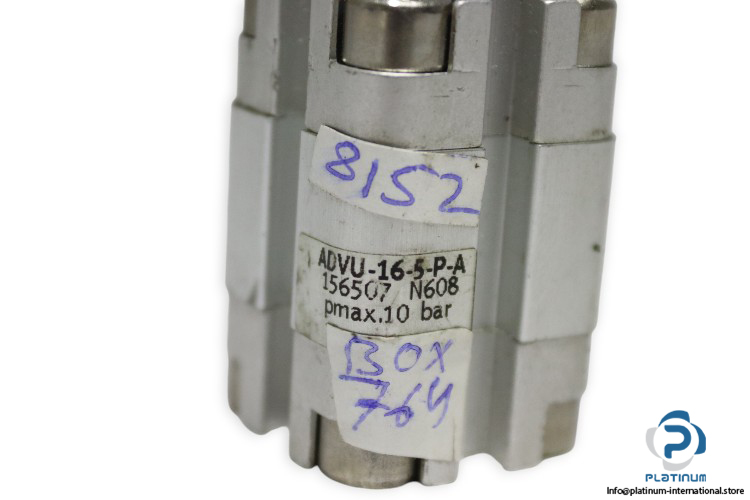

Model: ADVU-16-5-P-A
Part No.: 156507

Stroke Length: 5 mm
Piston Diameter: 16 mm
Piston rod thread: Female
Operating medium: Compressed air
Cushioning: Elastic cushioning rings/pads at both ends
Max. Operating Pressure: 10 bar
Position sensing: For proximity sensor
Mode of operation: Double acting
Pneumatic Connection: 5 mm
Material of cylinder barrel: Wrought aluminum alloy
Temperature: -20 … 80 °C
