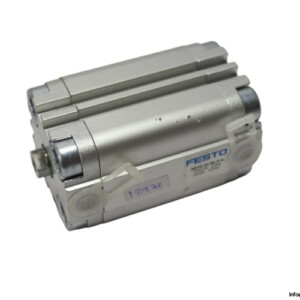

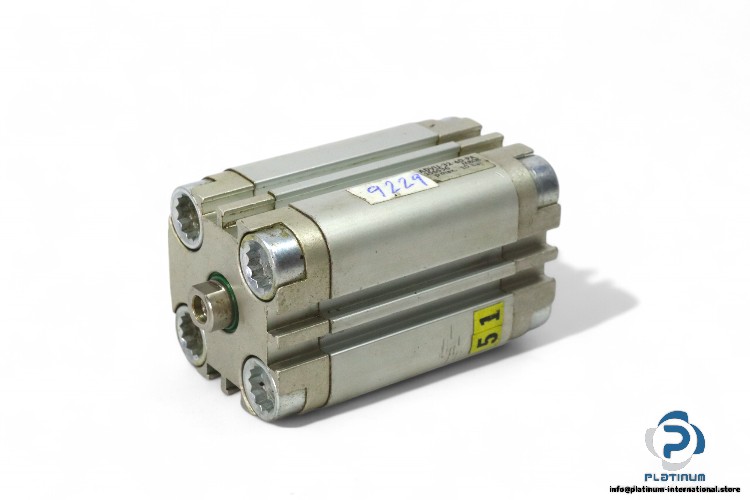

Festo 156536 Compact Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
Compact Air Cylinder
The Festo ADVU-32-40-P-A is a double-acting air cylinder with a 32 mm piston diameter and 40 mm stroke. Featuring elastic cushioning, stainless steel piston rod, and aluminum body, it operates between 0.8 to 10 bar pressure, making it ideal for a wide range of pneumatic applications.3240ActingADVU-32-40-P-AAirCompactCushioningCylinderDoubleElasticFestoIndustrialmmNBRPistonPneumaticSealsStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Festo ADVU-32-40-P-A “ Compact Air Cylinder
The Festo ADVU-32-40-P-A is a compact air cylinder designed for high-efficiency pneumatic operations. This double-acting piston cylinder offers elastic cushioning and high-quality materials, making it ideal for applications requiring durability and precision in controlled environments.
Manufacturer: Festo
Type: Compact Air Cylinder
Model: ADVU-32-40-P-A
Part No: 156536
| Operating Medium | Compressed air |
| Design | Piston |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Piston Rod End | Female Internal thread |
| Mode of Operation | Double-acting |
| Pressure | 0.8 to 10 bar |
| Piston Diameter | 32 mm |
| Stroke | 40 mm |
| Pneumatic Connection | G 1/8 |
| Cover Material | Wrought aluminum alloy |
| Material of Dynamic Seals | NBR |
| Piston Rod Material | High-alloy stainless steel |
| Material of Cylinder Barrel | Wrought aluminum alloy |
| Ambient Temperature Range | -20 to 80°C |
