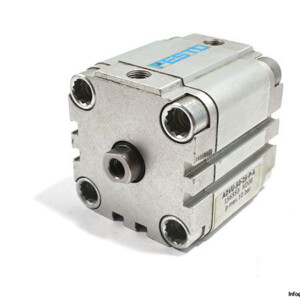

Festo 156553 Compact Cylinder
Neu
Auf Lager1 EinheitVersandbereit
Compact Air Cylinder
The Festo ADVU-50-25-P-A compact air cylinder features a 50 mm piston diameter and 25 mm stroke, designed for double-acting operation. Built with durable materials and elastic cushioning, it operates efficiently within a pressure range of 0.8 to 10 bar.2550ActuatorADVU-50-25-P-AAirAlloyAluminumCompactCompressedCylinderdiameterdouble-actingFestommPistonPneumaticStroke
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

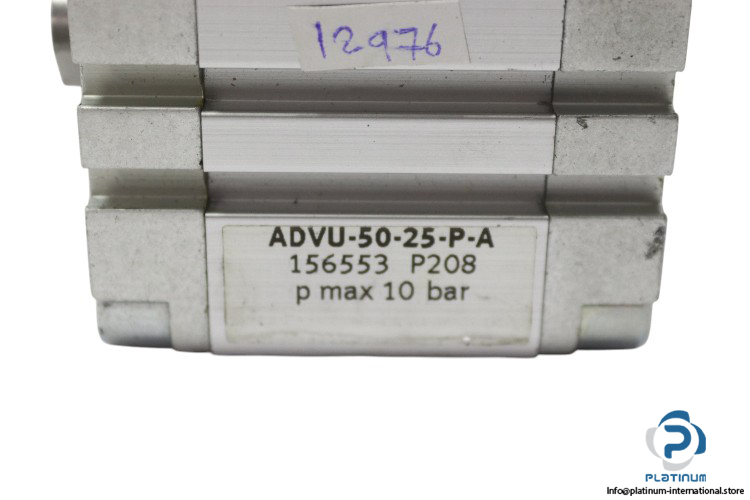

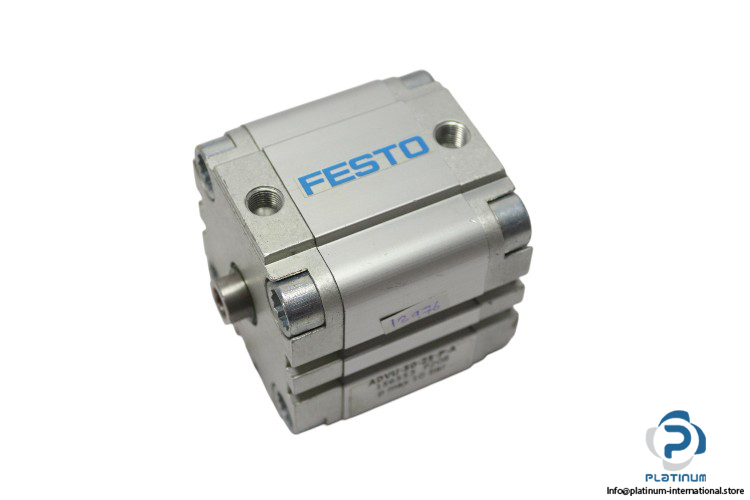

Festo ADVU-50-25-P-A “ Compact Air Cylinder
The Festo ADVU-50-25-P-A compact air cylinder is a reliable solution for pneumatic actuation in a range of industrial applications. With its double-acting design and elastic cushioning, it offers efficient performance and longevity under varying pressures.
Manufacturer: Festo
Type: Compact Air Cylinder
Model: ADVU-50-25-P-A
Part No.: 156553
| Operating Medium | Compressed air |
| Design | Piston |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Piston Rod End | Female thread |
| Mode of Operation | Double-acting |
| Operating Pressure | 0.8 to 10 bar |
| Piston Diameter | 50 mm |
| Stroke | 25 mm |
| Pneumatic Connection | G1/8 |
| Cover Material | Wrought aluminum alloy |
| Material of Dynamic Seals | NBR |
| Piston Rod Material | High-alloy steel |
| Ambient Temperature Range | -20 to 80°C |
