Festo 156564 Compact Cylinder
Gebraucht
Auf Lager3 EinheitenVersandbereit
Double-Acting Compact Cylinder
The Festo ADVU-63-40-PA is a double-acting compact cylinder with a 63mm piston diameter and 40mm stroke. Featuring high-quality materials and elastic cushioning at both ends, it ensures reliable and precise pneumatic operation.1/863mmCompactconnectionCushioningCylinderdiameterdouble-actingFestoGIndustrialPistonPneumaticPneumaticsProximitySensingWith
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

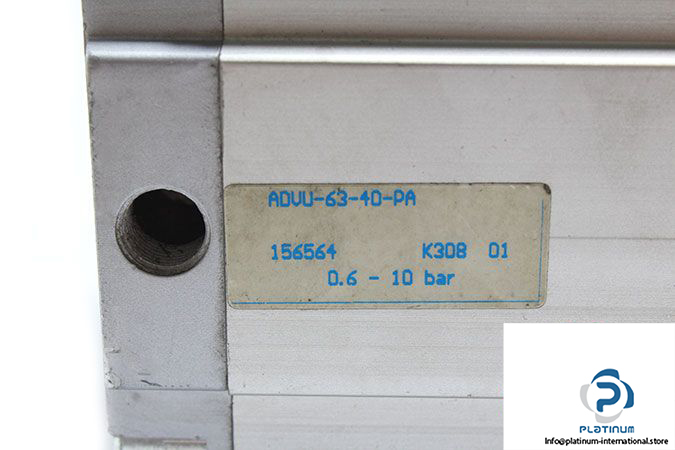

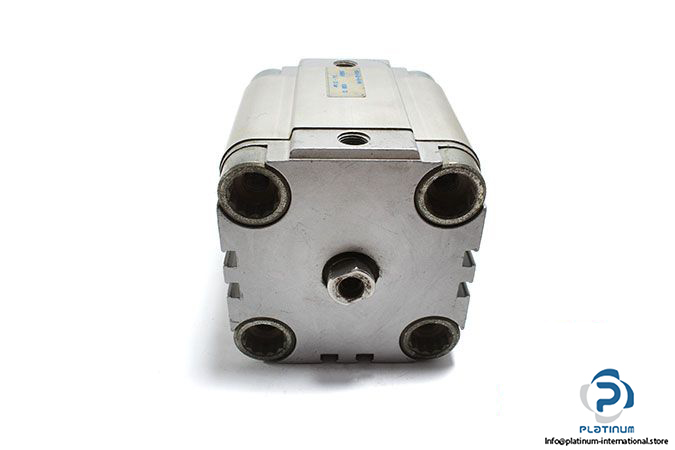

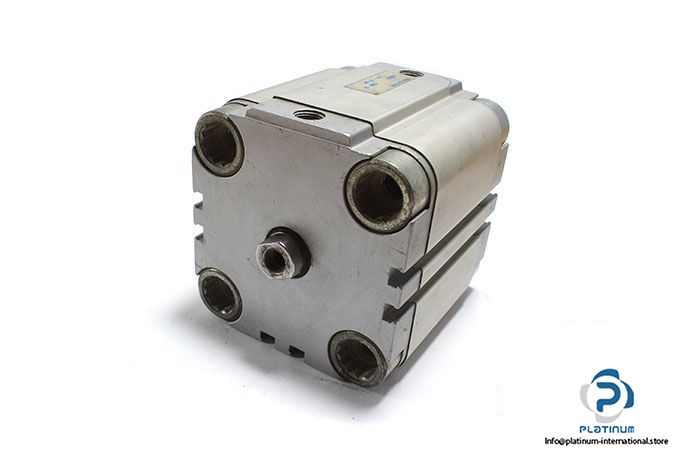

Festo ADVU-63-40-PA Double-Acting Compact Cylinder
The Festo ADVU-63-40-PA is a high-quality double-acting compact cylinder designed for reliable performance in industrial applications. Featuring a **63 mm piston diameter** and **40 mm stroke length**, this cylinder is engineered with durable materials such as **aluminium wrought alloy** and **high-alloy steel** for the piston rod. It offers efficient cushioning at both ends and is ideal for precise positioning with proximity sensing.
Manufacturer: FESTO
Type: Double-Acting Compact Cylinder
Model: ADVU-63-40-PA
Part No.: 156564
Technical Data:
- Cylinder Tube: Aluminium wrought alloy, Smooth anodised
- Piston Rod: High-alloy steel
- Stroke Length: 40 mm
- Piston Diameter: 63 mm
- Piston Rod Thread: Female thread
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Pneumatic Connection: G 1/8
- Operating Pressure: 0.6 / 10 bar
- Mode of Operation: Double-acting
- Temperature: -20 / 80 °C
