Festo 156594 Compact Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
Compact Cylinder
The Festo ADVU-16-10-A-PA compact cylinder features a 10 mm stroke, 16 mm piston diameter, and a double-acting design with M5 pneumatic connection for precise and efficient motion control.16ADVU-16-10-A-PACompactconnectionCushioningCylinderdiameterdouble-actingElasticFestoHigh-Alloyhigh-performanceM5mmPistonPneumaticProximityRODSensingstainlessSteelSwitch
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

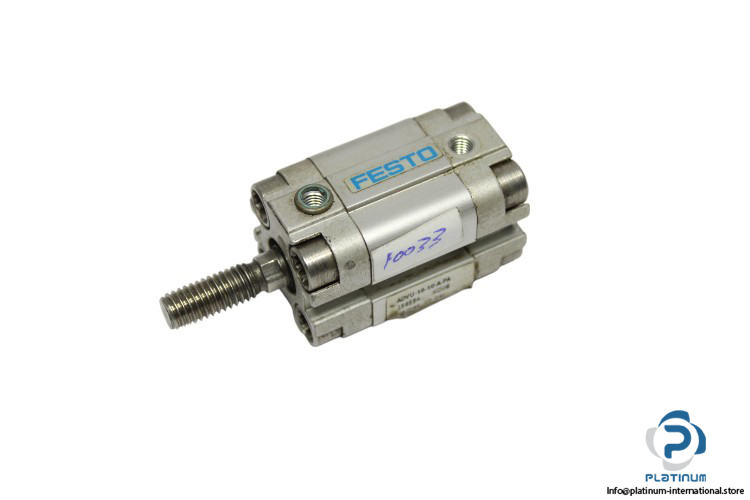

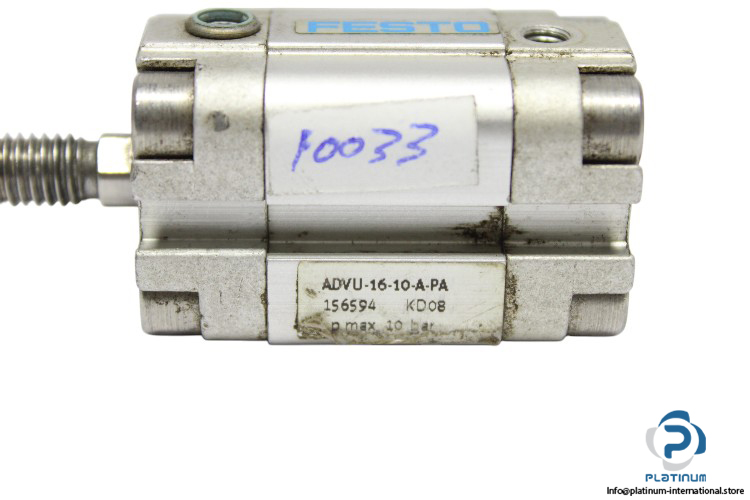

Festo ADVU-16-10-A-PA Compact Cylinder
The Festo ADVU-16-10-A-PA Compact Cylinder is a high-performance pneumatic actuator designed for applications requiring precise and efficient motion in limited spaces. With a 10 mm stroke length and double-acting operation, it ensures reliable functionality in various industrial environments.
Manufacturer: Festo
Type: COMPACT CYLINDER
Model: ADVU-16-10-A-PA
Part No.: 156594
This compact cylinder offers a space-saving design, high precision, and durability, making it ideal for automation applications that require efficient and smooth movement.
| Material Cover | Wrought aluminum alloy |
| Piston Rod | High-alloy stainless steel |
| Stroke Length | 10 mm |
| Piston Diameter | 16 mm |
| Piston Rod Thread | Male thread |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position Sensing | Via proximity switch |
| Variant | Piston rod at one end |
| Pneumatic Connection | M5 |
| Operating Pressure | 1.2 to 10 bar |
| Mode of Operation | Double-acting |
| Temperature Range | -20 to 80 °C |
