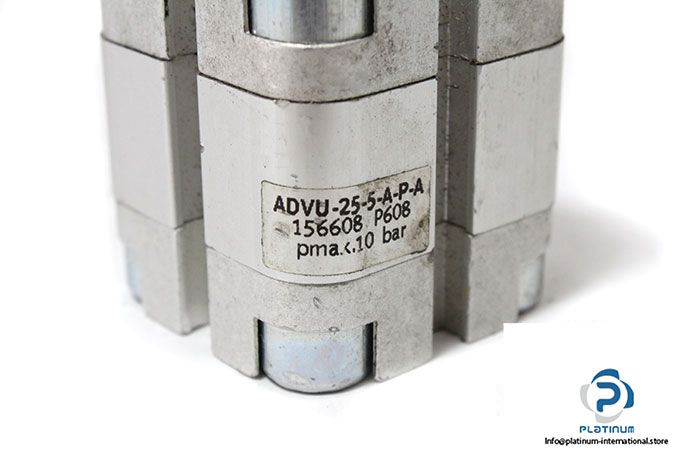

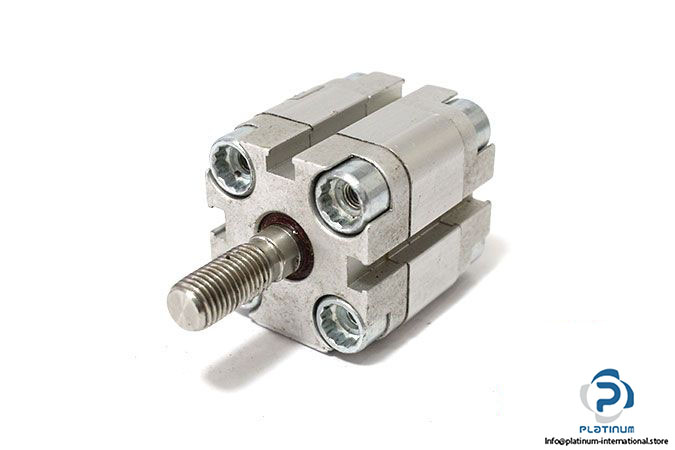

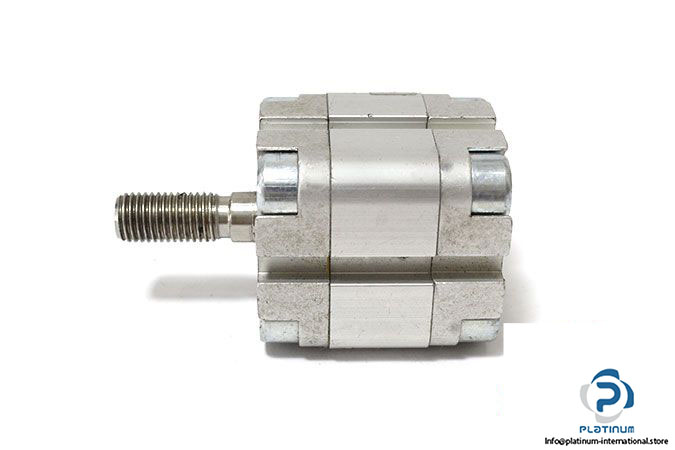

Festo 156608 Compact Cylinder

Manufacturer: FESTO

Type: Double Acting Compact Cylinder

Model: ADVU-25-5-A-P-A

Part No.: 156608

Materials

  Piston rod: High alloy stainless steel

  Cylinder Tube: Wrought Aluminum alloy

Type: Square piston rod

Stroke Length: 5 mm

Piston Diameter: 25 mm

Piston rod end: Male thread

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: M5

Temperature: -20 … 80 °C

Weight: 0.22 kg
