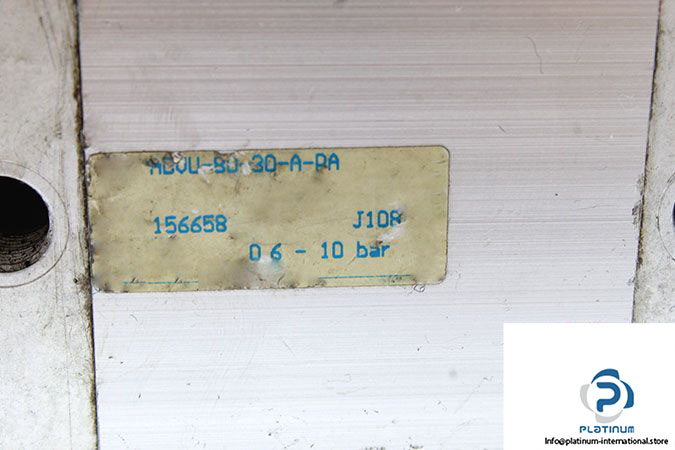

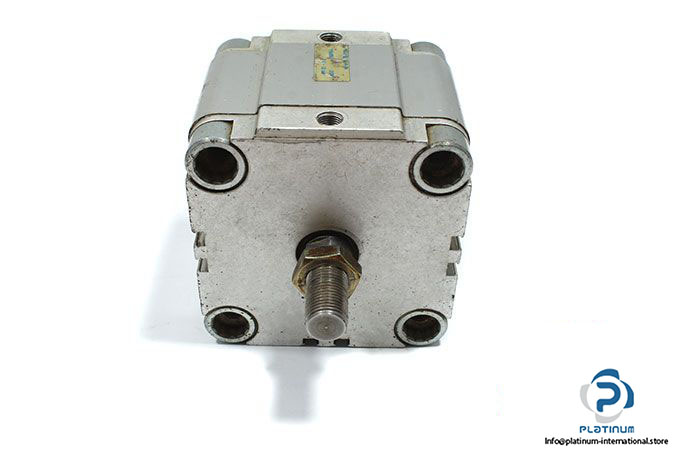

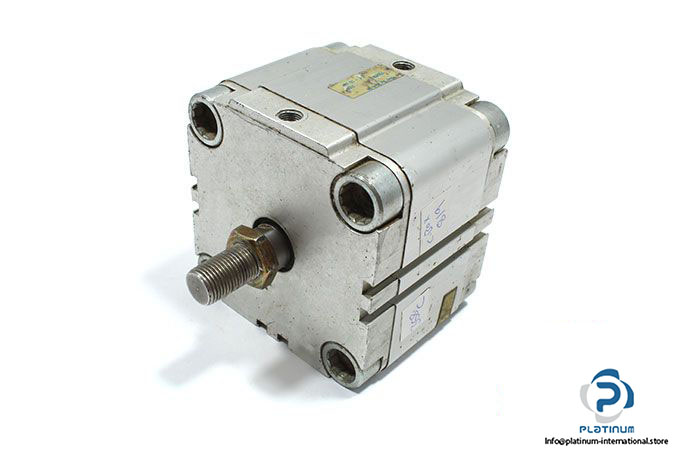

Festo 156658 Compact Cylinder

Manufacturer: FESTO

Type: Double-Acting Compact Cylinder

Model: ADVU-80-30-A-PA

Part No.: 156658

Materials

Cylinder Tube: Aluminium wrought alloy Smooth anodised

Piston rod: High-alloy steel

Stroke Length: 30 mm

Piston Diameter: 80 mm

Piston rod thread: Male thread

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Pneumatic Connection: G 1/8

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Temperature: -20 … 80 °C

Weight: 2.10 kg
