Compact Cylinder
The Festo ADVULQ-20-25-P-A compact cylinder features a 25 mm stroke, 20 mm piston diameter, and M5 pneumatic connection, offering high precision and efficient motion control in compact spaces.2025ActuatorADVULQ-20-25-P-AAutomationCompactconnectionCylinderdiameterdouble-actingFestohigh-performanceLengthM5mmPistonPneumaticRODstainlessSteelStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

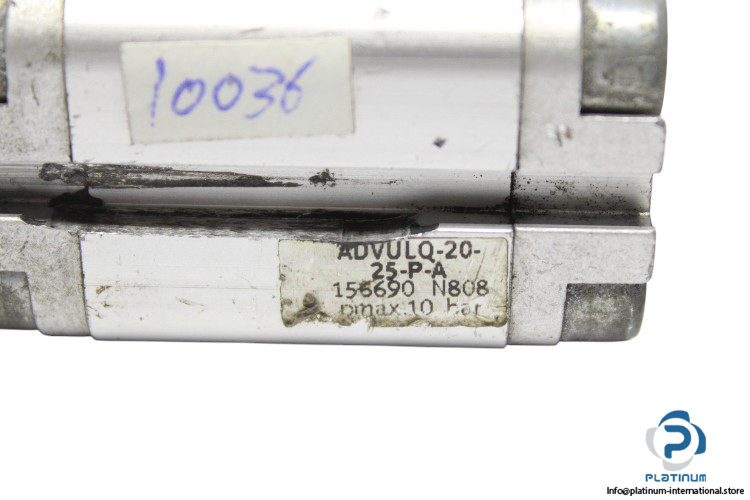

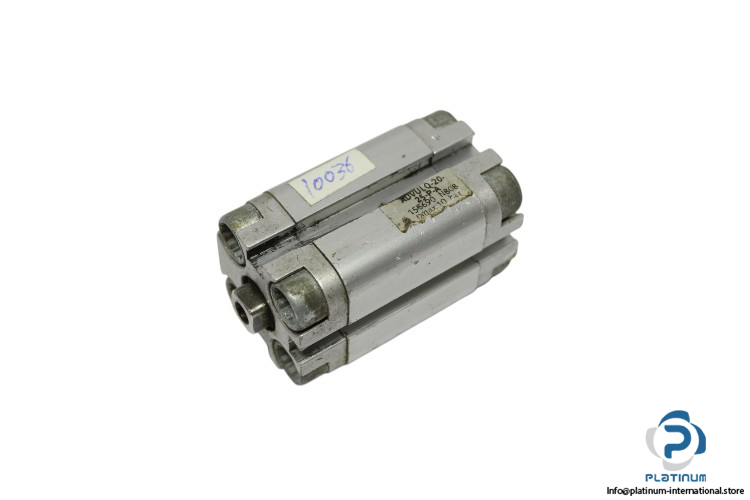

Festo ADVULQ-20-25-P-A Compact Cylinder
The Festo ADVULQ-20-25-P-A Compact Cylinder is a high-performance pneumatic actuator designed for applications requiring precise motion control in a compact space. Built with high-quality materials, this double-acting cylinder ensures durability and reliable operation across various industrial settings.
Manufacturer: Festo
Type: COMPACT CYLINDER
Model: ADVULQ-20-25-P-A
Part No.: 156690
Designed for efficiency and durability, this compact cylinder is ideal for space-limited applications requiring accurate and repeatable linear motion.
| Material Cover | Wrought aluminum alloy |
| Piston Rod | High-alloy stainless steel |
| Stroke Length | 25 mm |
| Piston Diameter | 20 mm |
| Piston Rod Thread | Female thread |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Position Sensing | Via proximity switch |
| Variant | Piston rod at one end |
| Pneumatic Connection | M5 |
| Operating Pressure | 1 to 10 bar |
| Mode of Operation | Double-acting |
| Temperature Range | -20 to 80 °C |
| Operating Medium | Compressed air |
